Запчасти Case IH 580 (B-44) - BUNK FEED PIVOT SHAFT (00) - COMPLETE MACHINE

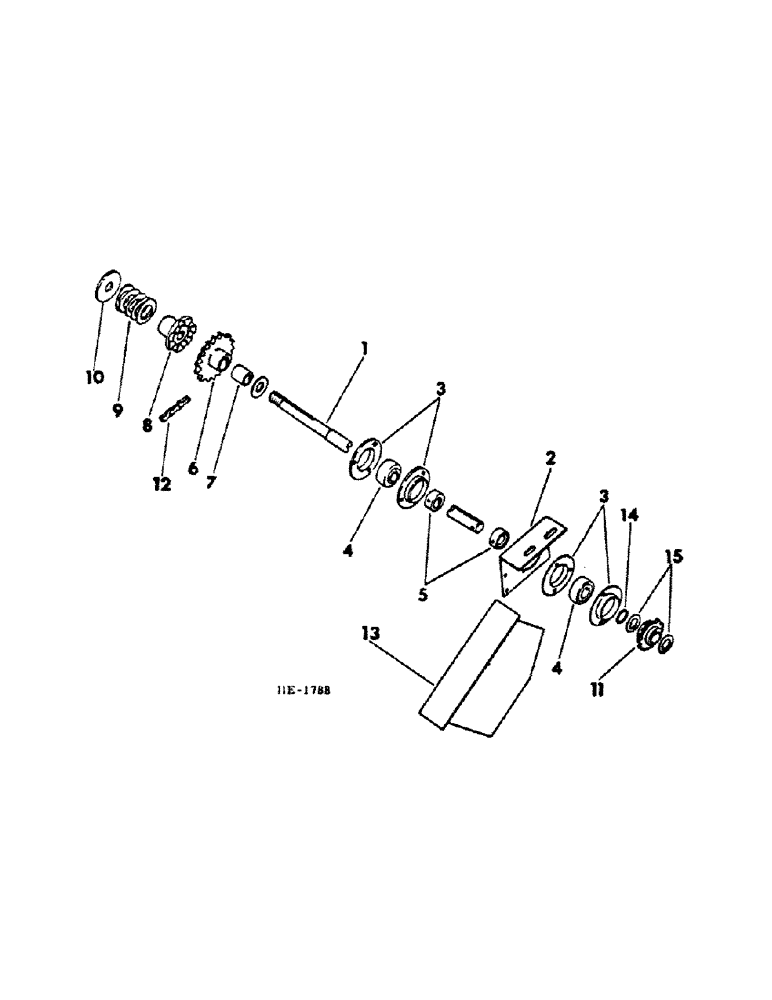

Схема запчастей Case IH 580 - (B-44) - BUNK FEED PIVOT SHAFT (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

820077C1

SHAFT

conveyor pivot

1шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

1шт.

426767

NUT,7/8"-14, G5

7/8-14 hex

1шт.

NLS

NO LONGER SERVICED

7/8-14 hex jam

1шт.

551855R1

WASHER

1.031 x 1.250 x .056

1шт.

609836R1

WASHER

1.031 x 1.750 x .056

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

2

820078C1

SUPPORT, pivot shaft rear

1шт.

21375R1

WASHER

.531 x 1.250 x 1.64

2шт.

3

462360R1

FLANGED BEARING

RETAINER, bearing flangette

4шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, pivot shaft

2шт.

5

455102R21

COLLAR

COLLAT ASSY, bearing locking

2шт.

5

455102R21

COLLAR

ASSY, bearing locking, includes 1-102569, screw

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 cup-pt set

1шт.

6

594975R11

SPROCKET ASSY, clutch drive, includes 1-606485R1, bushing

1шт.

7

606485R1

BUSHING, drive sprocket

1шт.

8

606496R1

CLUTCH, p[ivot shaft

1шт.

Q20

KEY,1/4" Sq x 2 1/8", Par

1/4 sq x 2-1/8 straight

1шт.

9

619034R1

SPRING

pivot shaft clutch

1шт.

10

495496R1

WASHER, .906 x 2.750 x .179 plain

1шт.

11

820056C1

SPROCKET ASSY, 14T pivot shaft driven

1шт.

Q67

KEY,1/4" Sq x 1 1/8", Par

1/4 sq x 1-1/8 straight

1шт.

12

CHAIN ASSY, pivot shaft clutch drive, use 25 links of 1 inch pitch, roller chain from A 10 foot lengt 569088R91 and add 1-457114R91, connecting link

1шт.

13

820058C1

SHIELD

ASSY, pivot shaft

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

551855R1

WASHER

1.031 x 1.250 x .056

1шт.

15

609836R1

WASHER

1.031 x 1.750 x .056

1шт.

Выбрано товаров: 31
