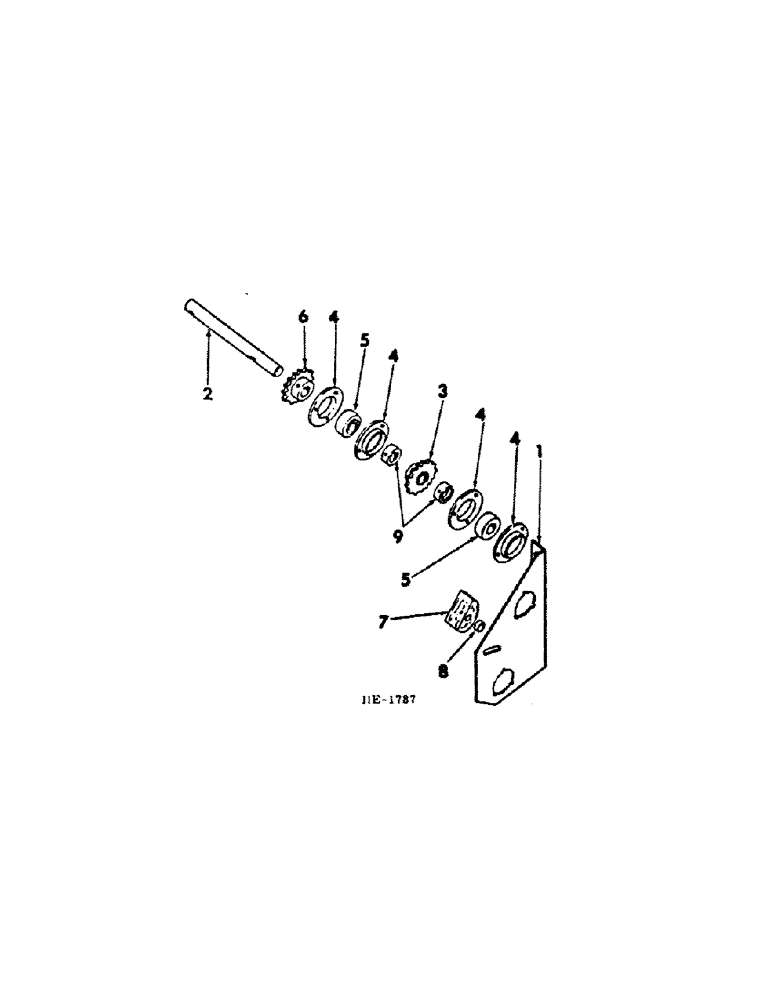

Запчасти Case IH 580 (B-41) - BUNK FEED JACK SHAFT (00) - COMPLETE MACHINE

1

820055C1

SUPPORT

counter jack shaft

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

594967R1

ROD

counter jack shaft

1шт.

3

594968R11

SPROCKET ASSY, 23T, jack shaft driven

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

4

462360R1

FLANGED BEARING

RETAINER, bearing flangette

4шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

4шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, jackshaft

2шт.

6

820964C1

SPROCKET ASSY.

SPROCKET ASSY, 19T jack shaft drive

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

7

585270R1

BLOCK

drive chain tightener

1шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .090

1шт.

8

302508R1

SPACER

tightener block

1шт.

9

455102R21

COLLAR

COLLAT ASSY, bearing locking, includes 1-102569, screw

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 cup-pt set

2шт.
