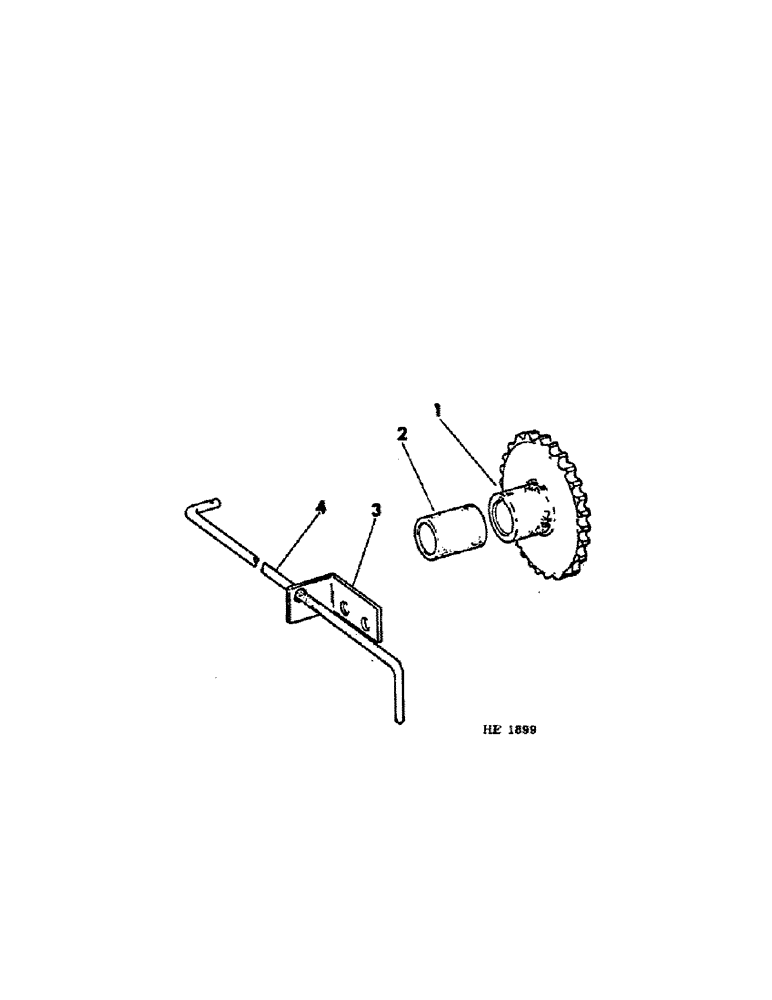

Запчасти Case IH 580 (B-41[A]) - BUNK FEED, MISCELLANEOUS (00) - COMPLETE MACHINE

1

820909C1

SPROCKET ASSY, 25T widespread beater drive

1шт.

2

850081C1

SPACER

drive sprocket

1шт.

3

820966C1

ANGLE, feed rod support

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

820967C1

ROD, bunk feed control

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
