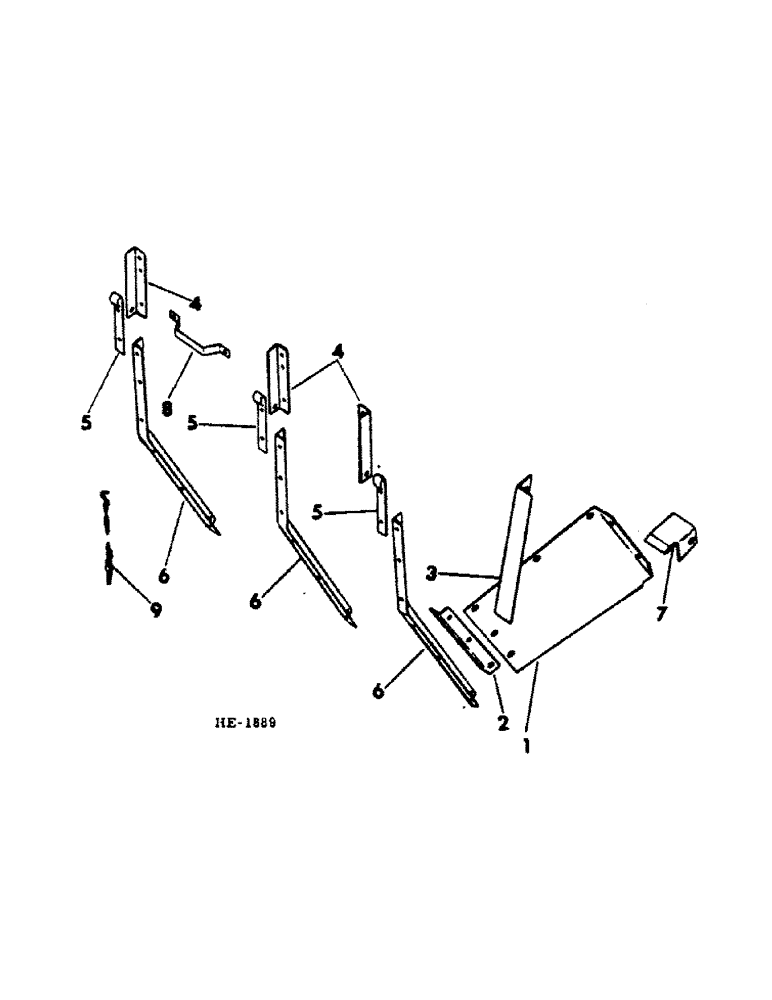

Запчасти Case IH 580 (B-38) - FORAGE BOX LOWER ENDGATE (00) - COMPLETE MACHINE

1

594929R1

SECTION, endgate outer support LH

1шт.

1

594930R1

SECTION, endgate outer support RH

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex-hd

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

594931R1

ANGLE

support section stiffener

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

611346R1

WASHER

.406 x .875 x .054

2шт.

3

594932R1

ANGLE, lower endgate stop

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

594933R1

ANGLE, lower rear endgate pivot LH

2шт.

4

594934R1

ANGLE, lower rear endgate pivot RH

2шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

21314R1

WASHER, .406 sq x 1.000 x .054

9шт.

5

594906R1

HINGE

lower rear endgate

3шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

K156

HEADED PIN,5/8" x 2 1/8"

PIN, 5/8 x 2-1/8 std-hd-dld

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

6

594935R1

SUPPORT, lower rear endgate

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

15шт.

120377

NUT,3/8" - 16, Gr 5

15шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

15шт.

611346R1

WASHER

.406 x .875 x .054

15шт.

7

594936R1

GUIDE, lower rear endgate LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

594937R1

GUIDE

lower rear endgate RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

591841R1

STRIP

rear endgate handle

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20744R1

WASHER, .344 x .875 x.054

2шт.

9

594938R91

CHAIN (AG)

CHAIN, lower rear endgate holding

1шт.
