Запчасти Case IH 580 (B-37) - FORAGE BOX UPPER REAR ENDGATE (00) - COMPLETE MACHINE

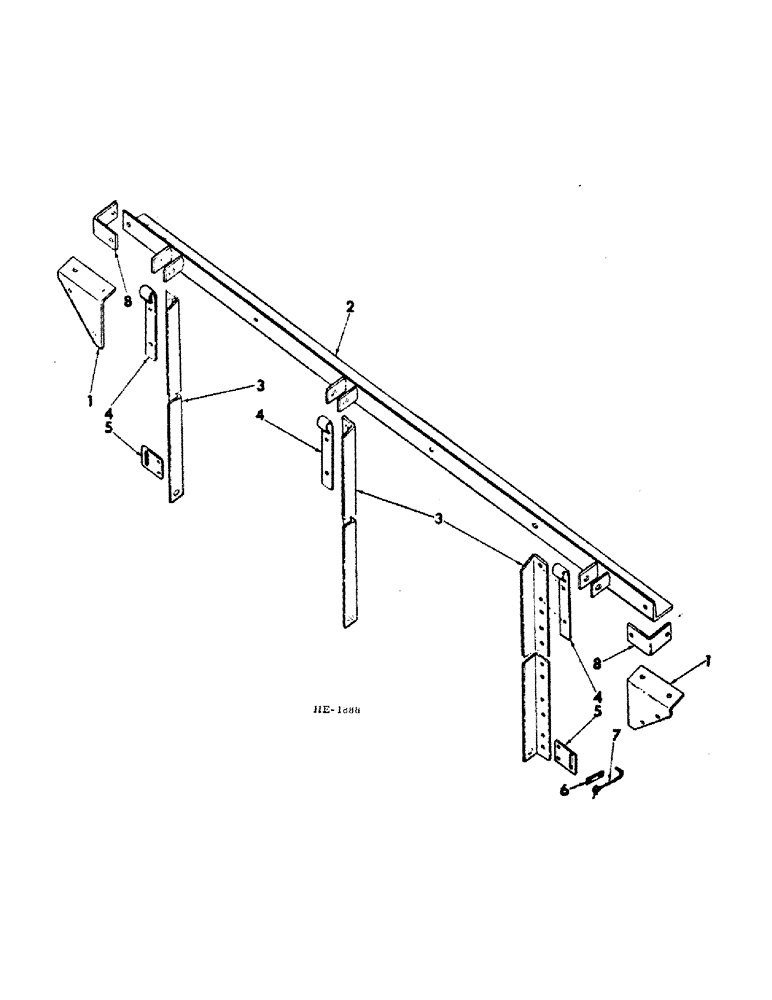

Схема запчастей Case IH 580 - (B-37) - FORAGE BOX UPPER REAR ENDGATE (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

594911R1

SUPPORT, endgate pivot LH

1шт.

1

594912R1

SUPPORT, endgate pivot RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

594902R11

SUPPORT ASSY, rear endgate pivot

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

594904R1

ANGLE, rear endgate support LH

2шт.

3

594905R1

ANGLE

rear endgate support RH

1шт.

637979R1

BOLT, 3/8-16 x 1-1/2 crg

29шт.

120377

NUT,3/8" - 16, Gr 5

29шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

29шт.

21314R1

WASHER, .406 sq x 1.000 x .054

29шт.

4

594906R1

HINGE

upper rear endgate

3шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

21314R1

WASHER, .406 sq x 1.000 x .054

6шт.

K156

HEADED PIN,5/8" x 2 1/8"

PIN, 5/8 x 2-1/8 std-hd dld

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

5

594908R1

STRIP

endgate door latch

2шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21314R1

WASHER, 406 sq x 1.000 x .054

4шт.

6

594909R1

BAR

endgate door latch

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

375893R91

AXLE PIN

PIN, endgate door latch

2шт.

8

594910R1

ANGLE

pivot support corner tie

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

2шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

BOLT, 3/8-16 x 2-3/4 crt type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21314R1

WASHER, .406 sq x 1.000 x .054

2шт.

Выбрано товаров: 38
