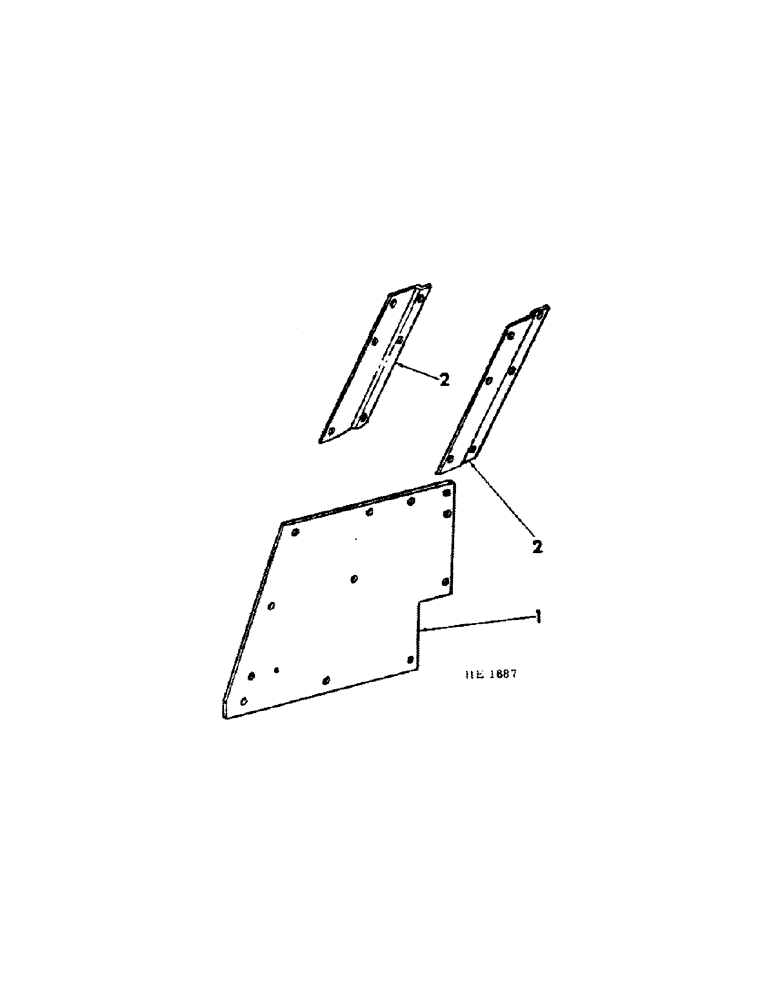

Запчасти Case IH 580 (B-36) - FORAGE BOX REAR SIDE, FORAGE BOX FRONT SIDE SUPPORTS (00) - COMPLETE MACHINE

1

594895R1

SECTION, rear side

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

8шт.

120377

NUT,3/8" - 16, Gr 5

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

611346R1

WASHER

.406 x .875 x 054

8шт.

2

594896R1

SECTION, side board LH front REINF

1шт.

2

594897R1

SECTION, side board RH front REINF

1шт.

2

594897R1

SECTION, side board LH rear REINF

1шт.

2

594896R1

SECTION, side board RH rear REINF, when upper beater is used

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

10шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

10шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

611346R1

WASHER

.406 x .875 x .054

8шт.

142619H

WASHER

.406 x .750 x .105

12шт.
