Запчасти Case IH 580 (B-36[A]) - FORAGE BOX FRONT SIDE SUPPORTS (00) - COMPLETE MACHINE

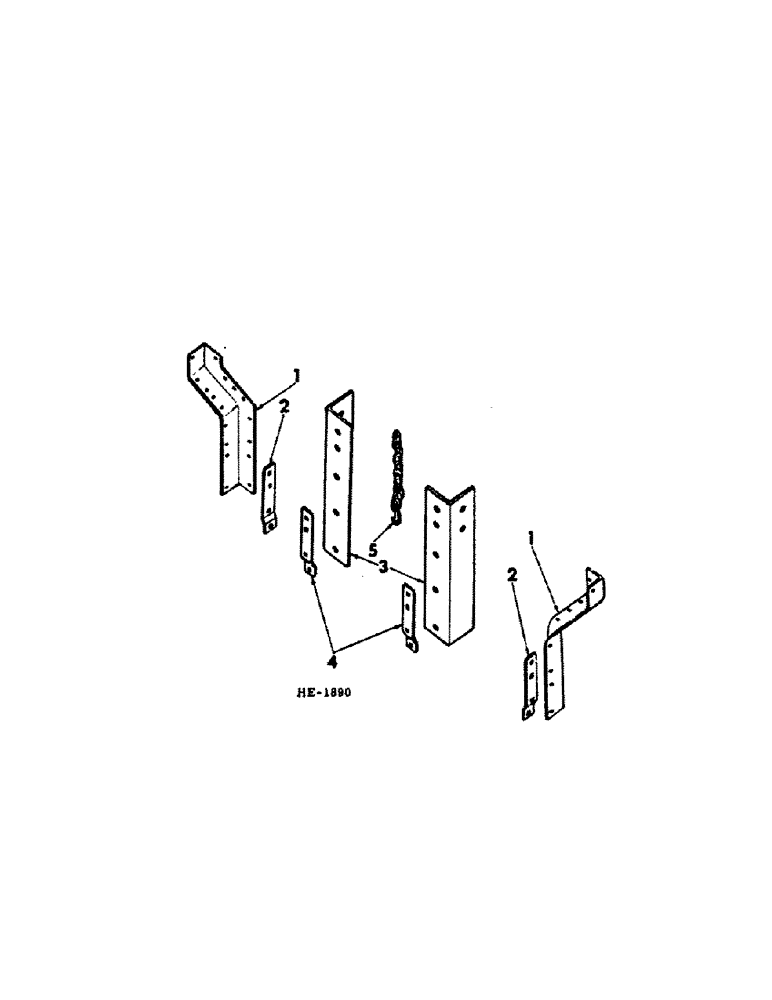

Схема запчастей Case IH 580 - (B-36[A]) - FORAGE BOX FRONT SIDE SUPPORTS (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

594898R1

SUPPORT, front side corner LH

1шт.

1

594899R1

SUPPORT, front side corner RH

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

26шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

BOLT, 3/8-16 x 2-3/4 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

28шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

28шт.

21314R1

WASHER, .406 sq x 1.000 x .054

28шт.

2

594891R1

BRACE, front corner support

2шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 crg

6шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8-16 x 2 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

594900R1

ANGLE

front side support LH

1шт.

3

594901R1

ANGLE

ANGEL, front side support RH

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-14 crg

2шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

4шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 crg

4шт.

17142R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2

BOLT, 3/8-16 x 3-1/2 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

21314R1

WASHER, .406 sq x 1.000 x .054

6шт.

4

594891R1

BRACE, front side support angle

2шт.

550769R1

BOLT, 3/8-16 x 1-1/4 crg

2шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

596721R1

CHAIN (AG)

CHAIN, pto hold up

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 31
