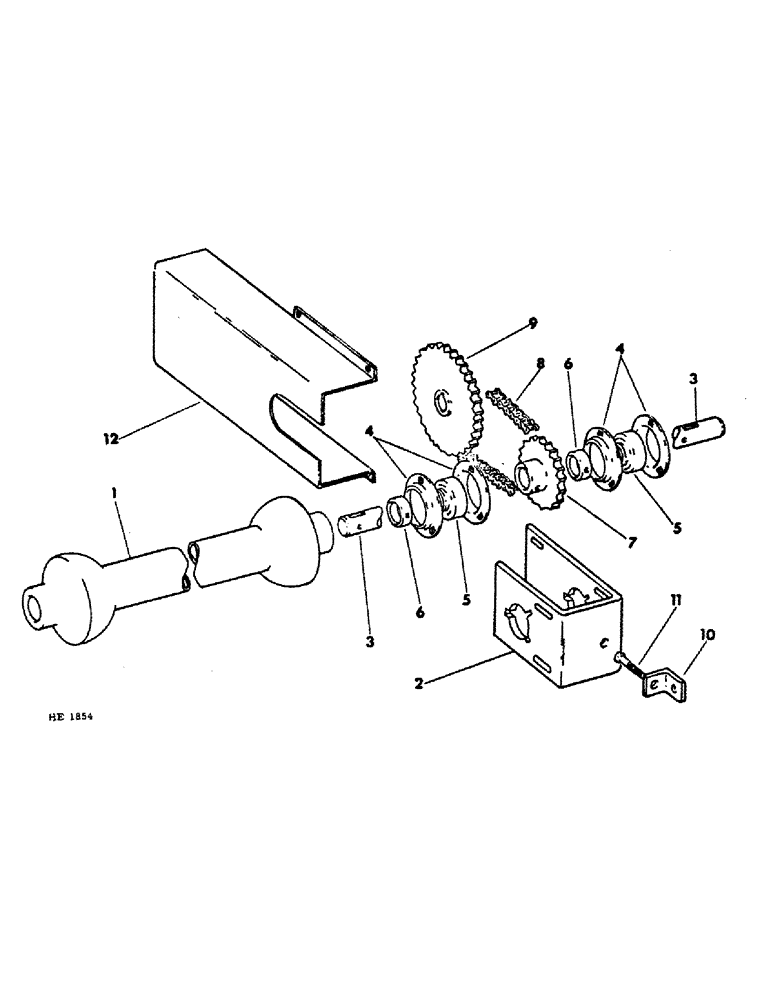

Запчасти Case IH 580 (B-34) - POWER TAKE OFF, TRAIL BEHIND, SPECIAL 1000 RPM (00) - COMPLETE MACHINE

1

JOINT ASSY, pto universal, for component parts refer to 1000 rpm power take off

1шт.

2

820787C1

CHANNEL

drive sprocket support

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

.406 x 1.000 x .054

4шт.

3

820789C1

SHAFT

1000 rpm drive

1шт.

4

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, drive shaft bearing

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

3шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

3шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

drive shaft

2шт.

6

557115R11

COLLAR

COLLAR ASSY, bearing locking, includes 1-115321, screw

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 cup pt set

2шт.

7

820786C1

SPROCKET ASSY.

SPROCKET ASSY, 18T drive

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

8

CHAIN ASSY, 1000 rpm drive, use 43 links of 3/4 inch single pitch roller chain from A 10 foot roll, 611362R91 and add 1, 611361R91, connecting link

1шт.

9

820785C1

SPROCKET ASSY.

SPROCKET ASSY, 32T driven

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

1шт.

113782

KEY

1/4 x 1 Woodruff

1шт.

10

820788C1

ANGLE

chain tightener

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

611034R1

BOLT, 3/8-16 x 2-1/2 crg spcl adj

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

12

820790C2

SHIELD

drive

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
