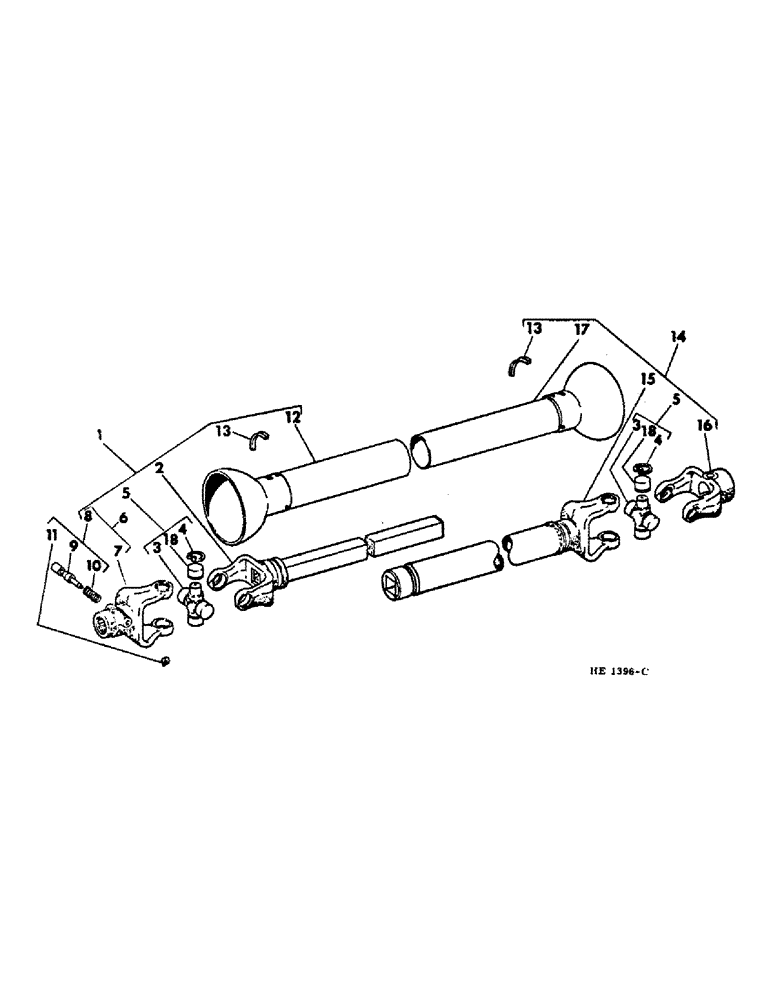

Запчасти Case IH 580 (B-33) - 1000 RPM POWER TAKE OFF, TRAIL BEHIND MODELS, SPECIAL (00) - COMPLETE MACHINE

1

820955C91

JOINT

ASSY, front half universal, consists of (1) yoke & bar 820968C1, (1) cross assy 667558R91, (1) yoke assy 820970C91, (1) shield 820960C1, (1) kit 599640R1

1шт.

2

820968C1

YOKE

AND BAR

1шт.

3

CROSS, centre, not serviced separately, for service order 1-667558R91, cross assy

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

2шт.

4

667561R1

RING

cross retaining

8шт.

5

667558R91

KIT

CROSS ASSY, centre, consist of (4) bearing (NSS), (1) cross (NSS), (4) ring 667561R1, (1) fitting 109454

1шт.

6

820970C91

YOKE

ASSY, quick detachable, consists of (1) yoke (NSS), (1) pin assy 820971C91

1шт.

7

YOKE, quick detachable, not serviced separately, for service order 1-820970C91, yoke assy

1шт.

8

820971C91

SET OF PARTS

PIN ASSY, release, consists of (1) spring 820972C1, (1) pin (NSS), (1) washer 661406R1

1шт.

9

PIN, yoke release, not serviced separately, for service order 1-820971C91, pin assy

1шт.

10

820972C1

SPRING

release pin

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

lock pin X

1шт.

12

820960C2

SHIELD

outer

1шт.

13

599640R1

KIT

BEARING KIT, shield nylon

2шт.

14

820956C91

JOINT

ASSY, rear half universal, consists of (1) yoke & shaft 820969C1, (1) cross assy 667558R91, (1) yoke 820582C1, (1) shield 820958C1, (1) kit 599640R1

1шт.

15

820969C1

YOKE

AND SHAFT

1шт.

16

820582C1

YOKE

w/keyway

1шт.

17

820958C1

SHIELD

inner

1шт.

18

BEARING, cross, not serviced separately order 667558R91 cross assy

1шт.
