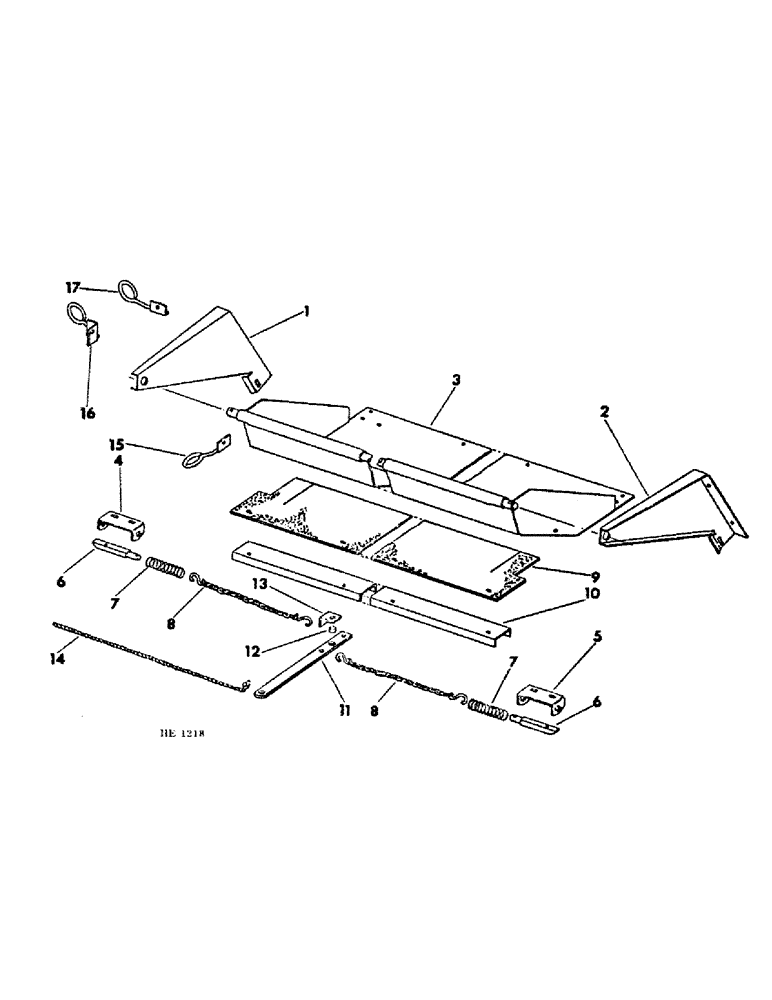

Запчасти Case IH 580 (B-55) - REAR SLURRY PAN Invalid section

1

594527R1

HANGER

BRACKET, slurry pan hanger LH

1шт.

2

594528R1

HANGER

BRACKET, slurry pan hanger RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

594529R21

PAN ASSY, rear slurry

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

609836R1

WASHER

1.031 x 1.750 x .054, use as required

4шт.

4

592453R1

BRACKET

slurry pan latch LH

1шт.

5

592454R1

BRACKET

slurry pan latch RH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

592455R1

LATCH

slurry pan

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

.531 sq x 1.000 x 054

2шт.

7

592456R1

SPRING

slurry pan latch

2шт.

8

594532R91

CHAIN, slurry pan latch

2шт.

9

594533R1

COVER

slurry pan bottom

1шт.

10

594534R1

CHANNEL, pan bottom cover

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

11

594535R1

COVER

SUPPORT, latch control

1шт.

12

594536R1

BUSHING

latch control pivot

1шт.

13

594537R1

ANGLE

latch control stop

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

14

ROPE, 3/8 polypropolene x 32 ft trip, dealer to supply from bulk stock

1шт.

15

594538R11

GUIDE

ASSY, trip rope rear

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

612766R12

GUIDE

ASSY, rope intermediate

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

612934R11

GUIDE

ASSY, trip rope front

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
