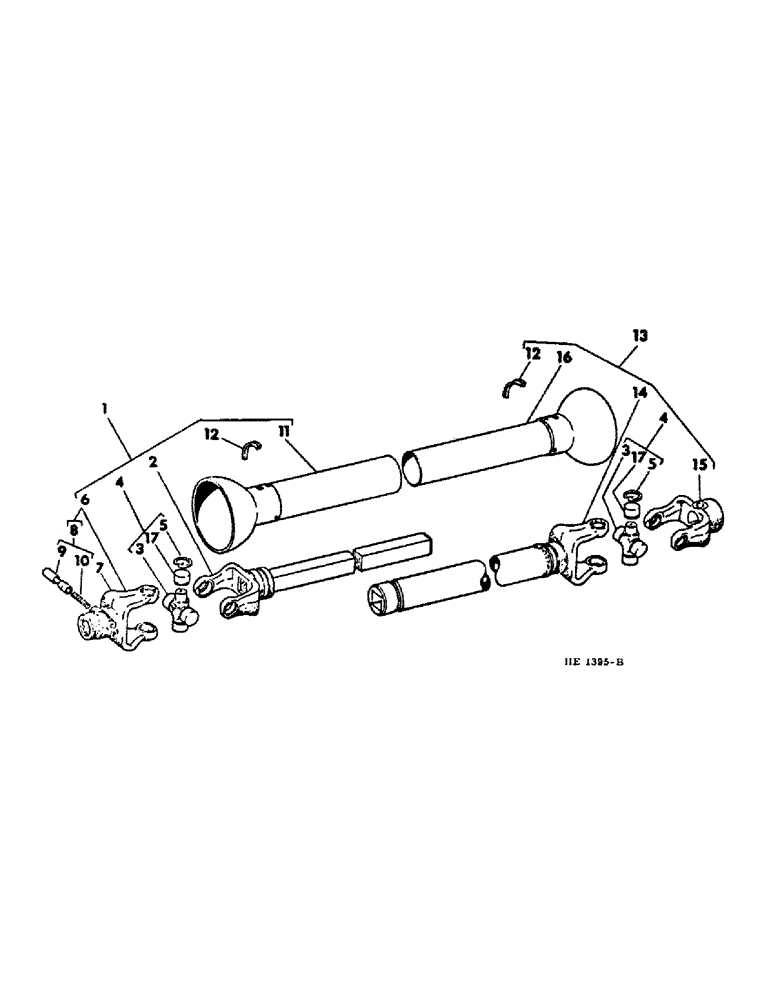

Запчасти Case IH 580 (B-32) - 540 RPM PTO TRAIL BEHIND REGULAR (00) - COMPLETE MACHINE

1

820954C91

JOINT

ASSY, front half universal, consists of (1) yoke & bar 820968C1, (1) cross assy 667558R91, (1) yoke assy, 613897R92, (1) shield 820960C1, (1) kit 599640R1

1шт.

2

820968C1

YOKE

AND BAR

1шт.

3

CROSS, centre, not serviced separately, for service order 1-667558R91, cross assy

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

2шт.

4

667558R91

KIT

CROSS ASSY, centre, consist of (4) bearing (NSS), (1) cross (NSS), (4) ring 667561R1, (1) fitting 109454

1шт.

5

667561R1

RING

cross retaining

8шт.

6

568100R92

YOKE

ASSY, quick detachable, replaces 613897C92, consists of (1) yoke (NSS), (1) pin assy 613867R11

1шт.

7

YOKE, quick detachable, not serviced separately, for service order 1-568100R92, yoke assy

1шт.

8

613867R11

PIN

ASSY, release, consists of (1) pin 17078R1, (1) spring 613868R1, (1) pin (NSS)

1шт.

9

PIN, yoke release, not serviced separately, for service order 1-613867R11, pin assy

1шт.

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

10

613868R1

SPRING

release pin

1шт.

11

820960C2

SHIELD

outer

1шт.

12

599640R1

KIT

BEARING KIT, shield nylon

2шт.

13

820956C91

JOINT

ASSY, rear half universal, consists of (1) yoke & shaft 820969C1, (1) cross assy 667558R91, (1) yoke 820582C1, (1) shield 820958C1, (1) kit 599640R1

1шт.

14

820969C1

YOKE

AND SHAFT

1шт.

15

820582C1

YOKE

w/keyway

1шт.

16

820958C1

SHIELD

inner

1шт.

17

BEARING, cross, not serviced separately order 667558R91 cross assy

1шт.
