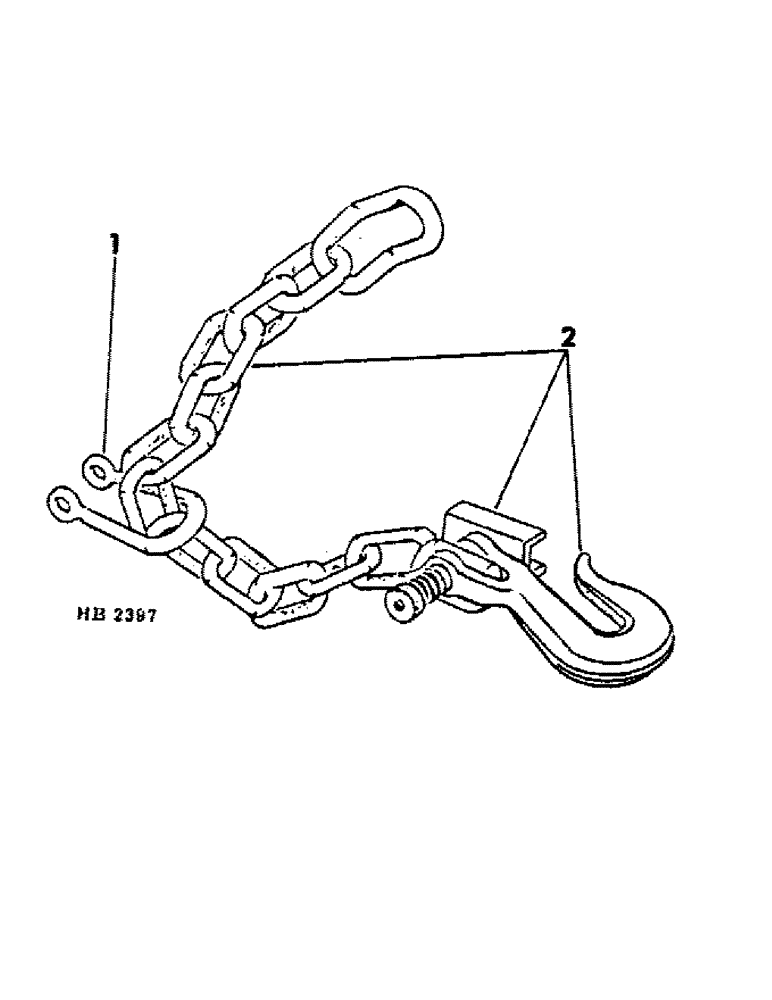

Запчасти Case IH 580 (B-31) - HIGHWAY SAFETY CHAIN EQUIPMENT (00) - COMPLETE MACHINE

1

S9173A

CLEVIS

safety chain

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex-lock

1шт.

2

63506C2

CHAIN (CE)

CHAIN, 20000 lbs capacity safety

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

22244R1

LOCK NUT

3/4-10 hex-lock

1шт.

26512R1

WASHER

.781 x 2.000 x .164

1шт.

61913C92

PACKAGE

safety chain hardware, consists of (1) clevis S9173A, (1) bolt 271729, (1) nut 19508R1, (1) bolt 271773, (1) nut 18444R1, (1) washer 26512R1

1шт.
