Запчасти Case IH 580 (B-30) - CONTROLS (00) - COMPLETE MACHINE

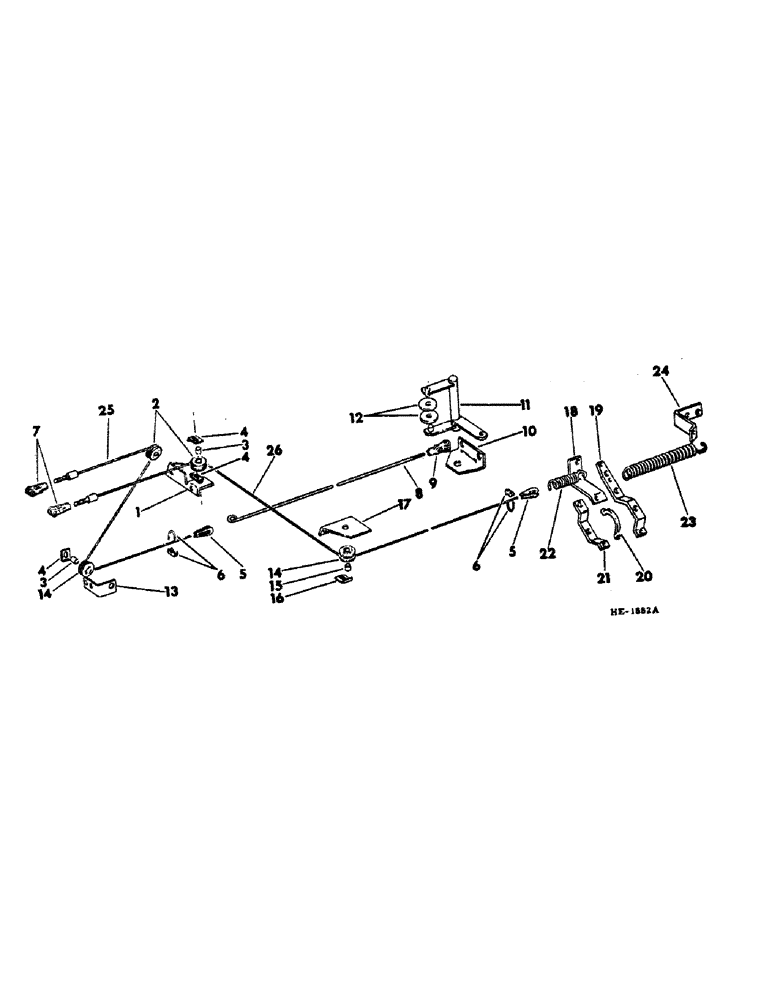

Схема запчастей Case IH 580 - (B-30) - CONTROLS (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

820791C1

SUPPORT, cable pulley front, trail behind model

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

820652C1

PULLEY

control cable, trail behind model

2шт.

3

561277R1

SPACER,5/8" Tube x 1/2"

BUSHING, pulley, trail behind model

2шт.

4

820651C1

ANGLE

cable guide, trail behind model

3шт.

21782R1

WASHER

.656 x 1.500 x .054

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

457796R1

EYE

control cable

2шт.

6

457797R1

CLAMP

control cable

2шт.

7

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 adj rod end

2шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

2шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

8

820908C1

BOLT

throw out rod

1шт.

120368

NUT,5/16"-24, G5

1шт.

9

104037

CLEVIS

5/16 adj rod end

1шт.

114784

PIN

5/16 x 31/32 rod end

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

10

820864C1

ANGLE, throw out arm bottom support

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

11

593053R91

ARM

ASSY, clutch throw out

1шт.

21753R1

WASHER

.781 x 1.500 x .054

1шт.

12

617439R1

WASHER

ROLLER, clutch throw out

2шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

13

820793C1

ANGLE, pulley support, trail behind

1шт.

13

820793C1

ANGLE, pulley support, truck model

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 crg, truck model

2шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

14

820652C1

PULLEY

control cable, trail behind

2шт.

14

820652C1

PULLEY

control cable, truck model

5шт.

15

561277R1

SPACER,5/8" Tube x 1/2"

BUSHING, pulley, 1 per pulley

1шт.

16

820651C1

ANGLE

cable guide, 1 per pulley

1шт.

21782R1

WASHER

.656 x 1.500 x 054, 3 used per angle

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd, 1 used per angle

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

17

820792C1

SUPPORT, cable pulley corner, trail behind model

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

557950R1

WASHER

.406 x 1.000 x .164

1шт.

17

820794C1

SUPPORT, cable pulley corner, truck model

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

557950R1

WASHER

.406 x 1.000 x .164

1шт.

18

820862C2

SUPPORT, shifter lever

1шт.

19

820863C1

LEVER

apron clutch shifter

1шт.

820520C1

SPACER

lever pivot

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20600R1

WASHER

.281 x .750 x .105

1шт.

20

820333C1

FORK

clutch shifter

1шт.

21118R1

LUBE NIPPLE,1/8" x .47" lg, Drive

FITTING, 1/8 str drive type

1шт.

21

820326C1

CLAMP

shifter fork retaining

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4-20 x 7/8 hex hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20600R1

WASHER

.281 x .750 x .105

1шт.

22

821365C1

SPRING

lever front tension, for service order 1-357832R1 spring

1шт.

22

357832R1

SPRING

lever front tension

1шт.

23

617905R1

SPRING

lever rear return

1шт.

24

820862C2

SUPPORT, return spring

1шт.

496967R1

BOLT, 3/8-16 x 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25

CABLE ASSY, beater control, 570, trail behind model, for service cut 36.7 inches from 79.7 inches in part 821909C1

1шт.

25

821909C1

CABLE

ASSY, beater control, 570, truck model

1шт.

25

CABLE ASSY, beater control, 580, trail behind model, for service cut 60.7 inches from 79.7 inches in part 821909C1

1шт.

25

CABLE ASSY, beater control, 580, truck model, for service cut 103.7 inches from 150.7 inches in part 821912C1

1шт.

26

CABLE ASSY, apron control, 570, trail behind model, for service cut 182.7 inches from 225.7 inches in part 820399C2

1шт.

26

821912C1

CABLE

ASSY, apron control, 570, truck model

1шт.

26

CABLE ASSY, apron control, 580, trail behind model, for service cut 206.7 inches from 225.7 inches in part 820399C2

1шт.

26

CABLE ASSY, apron control, 580, truck model, for service cut 175.7 inches from 225.7 inches in part 820399C2

1шт.

Выбрано товаров: 87
