Запчасти Case IH 580 (B-29) - FRONT APRON SHAFT (00) - COMPLETE MACHINE

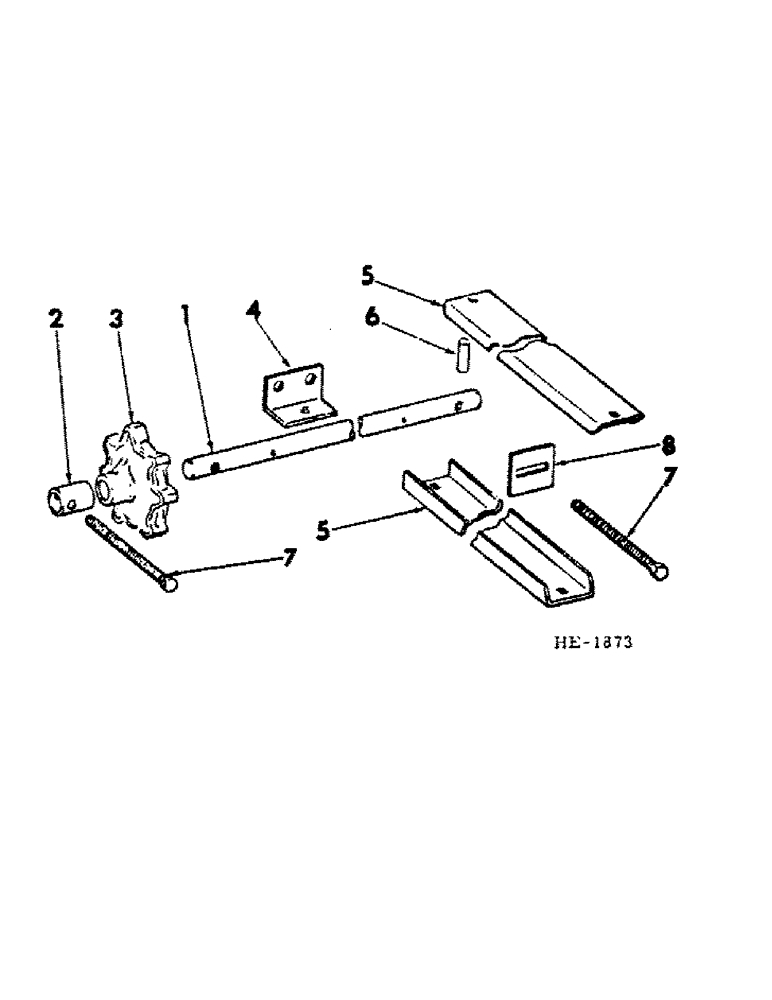

Схема запчастей Case IH 580 - (B-29) - FRONT APRON SHAFT (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

820873C1

SHAFT

front apron

2шт.

580342R1

SPACER,1" Pipe x 1/2"

1 x 1/2 std pipe

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

8шт.

2

592993R2

SPACER

front apron shaft outer

2шт.

3

612976R2

SPROCKET ASSY.

SPROCKET, 7T front apron shaft

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

609836R1

WASHER

1.031 x 1.750 x .054

8шт.

4

820932C1

ANGLE, tightener channel support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

820859C1

CHANNEL

apron centre tightener, for use w/steel detachable type apron chain

2шт.

5

CHANNEL, apron centre tightener, for use w/heavy duty lock type apron chain, refer to HZG 839 in package 821385C91 or 821386C91 and make locally

2шт.

17142R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2

BOLT, 3/8-16 x 3-1/2 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

936153R1

SPACER

3/8 x 2-1/4 extra strong

2шт.

7

592995R1

BOLT,Hex, 7/16" x 8 3/4"

7/16-14 x 8-3/4 tightener

4шт.

893862R1

WASHER

.469 x 1.250 x .090

4шт.

8

820940C1

BAR

tightener bolt reinforcement

1шт.

Выбрано товаров: 21
