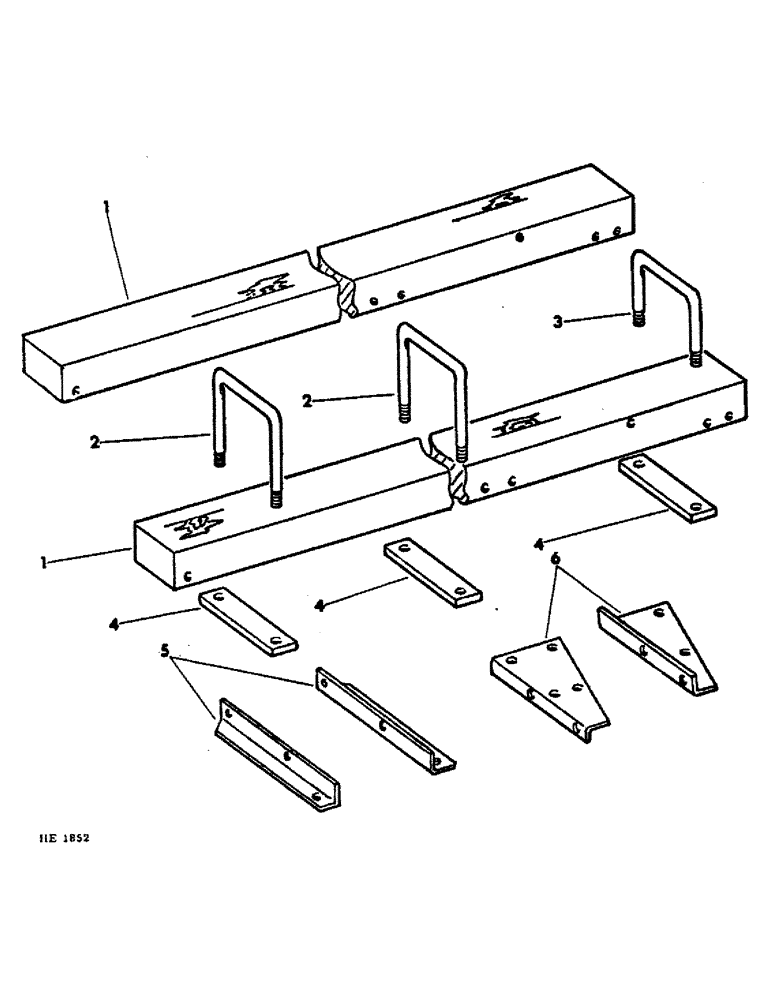

Запчасти Case IH 580 (B-24) - TRUCK BOTTOM SUPPORTS (00) - COMPLETE MACHINE

1

820892C1

BOARD, bottom cross channel support, 570

2шт.

1

592847R1

BLOCK

BOARD, bottom cross channel support, 580

2шт.

2

592848R1

BOLT

U-BOLT, block front clamping

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

592849R1

BOLT

U-BOLT, block rear clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

592850R2

BAR, u-bolt clamping

6шт.

5

592851R1

ANGLE, bottom cross channel mtg LH

4шт.

5

592852R1

ANGLE

bottom cross channel mtg RH

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 x 5 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

20шт.

120384

WASHER,1/2"

LOCK, 1/2"

20шт.

6

592835R1

SUPPORT, bottom cross channel, LH

4шт.

6

592836R1

SUPPORT

bottom cross channel RH

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 x 5 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.
