Запчасти Case IH 580 (B-23) - BOX, BOTTOM (00) - COMPLETE MACHINE

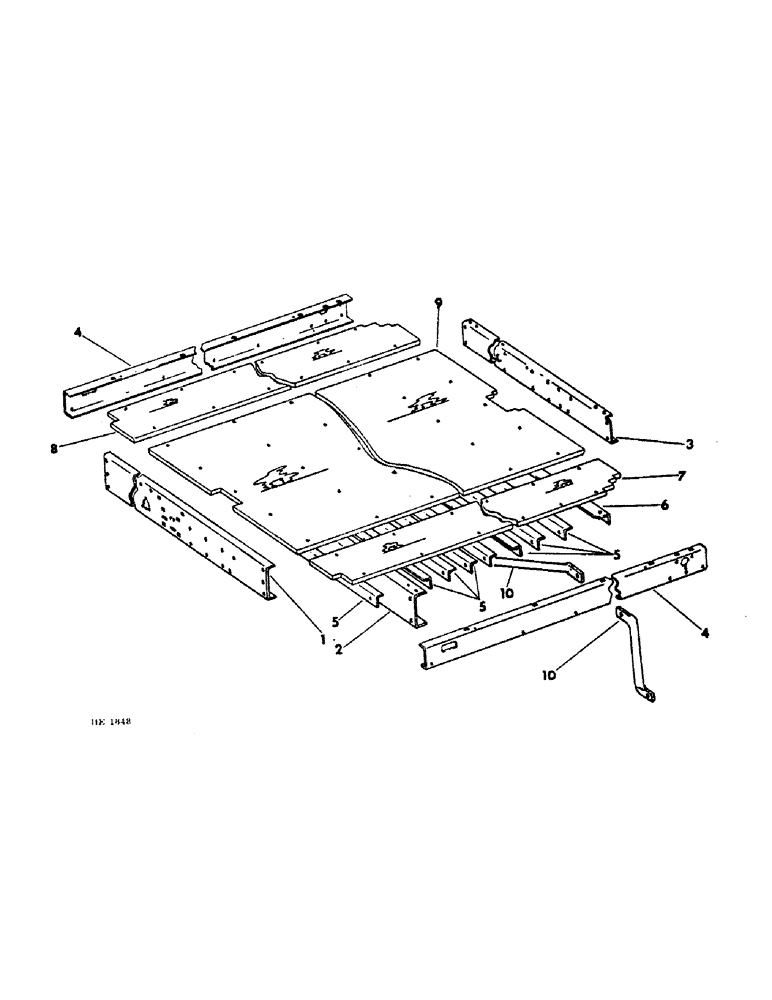

Схема запчастей Case IH 580 - (B-23) - BOX, BOTTOM (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

820853C2

CHANNEL

bottom front cross

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex hd, trail behind model

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

820856C1

CHANNEL

second & third cross, 570

2шт.

2

592857R3

CHANNEL, second & third cross, 580

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Trail behind model Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

592859R2

CHANNEL

bottom fourth cross

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Trail behind model Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

820798C1

CHANNEL, bottom side LH, 570

1шт.

4

592868R2

CHANNEL, bottom side LH, 580

1шт.

4

820799C1

CHANNEL, bottom side RH, 570

1шт.

4

592869R2

CHANNEL, bottom side RH, 580

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

10шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

5

592870R3

ANGLE, board support, 570

7шт.

5

592870R3

ANGLE, board support, 580

8шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg, 570

14шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg, 580

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

6

597666R2

ANGLE

bottom board rear support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

820918C1

BOARD, bottom outer LH, 570

1шт.

7

820921C1

BOARD, bottom outer LH, 580

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

8

820919C1

BOARD, bottom outer RH, 570

1шт.

8

820922C1

BOARD, bottom outer RH, 580

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

15шт.

120377

NUT,3/8" - 16, Gr 5

15шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

15шт.

9

820920C1

BOARD, bottom centre, 570

1шт.

9

820923C1

BOARD, bottom center, 580

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg, (40), 570

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg, (45), 580

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

10

597667R1

BRACE

rear apron shaft

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

.531 x 1.250 x .090

2шт.

Выбрано товаров: 51
