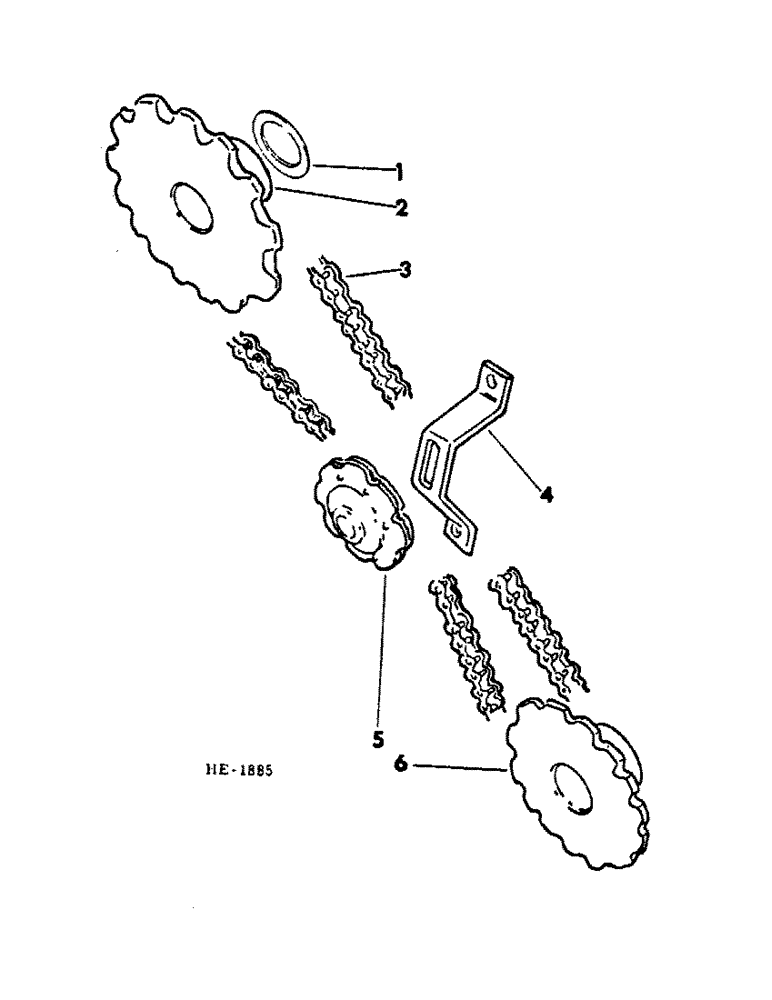

Запчасти Case IH 580 (B-54) - UPPER BEATER, DRIVE Invalid section

1

22841R1

BOLT,Hex, 3/4"-10 x 8", G2

WASHER, 1.406 x 2.250 x .054

1шт.

2

593078R2

SPROCKET ASSY.

SPROCKET, 15T upper beater driven, for service on machines built prior to the 1977 season

1шт.

586879R1

KEY

5/16 x 2 straight

1шт.

22481R1

WASHER

1.406 x 2.250 x .054

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

2

593080R2

SPROCKET ASSY.

SPROCKET, 12T upper beater driven, for service on machines built 1977 season and since

1шт.

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

22481R1

WASHER

1.406 x 2.250 x .054

2шт.

618573R1

PIN,1/4" x 2 1/4", Coiled

1шт.

3

CHAIN ASSY, upper beater drive, for service on machines built prior to the 1977 season, use 47 links of 1-1/2 inch pitch agriculture roller chain from A 10 foot roll 569090R91 and add 1-587368R91, connecting link

1шт.

3

CHAIN ASSY, upper beater drive, for service on machines built 1977 season and since, use 47 links of 1-1/2 inch pitch agriculture roller chain from A 10 foot roll, 569090R91 and add 1-587368R91, connecting link and1-567009R91, offset link

1шт.

4

593018R1

SUPPORT

chain tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

569065R91

SPROCKET ASSY.

SPROCKET, 7T chain tightener

1шт.

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT, 5/8-11 x 2-1/2 crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

.656 x 1.250 x .105

3шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

6

593080R2

SPROCKET ASSY.

SPROCKET, 12T beater drive

1шт.

113879

KEY

5/16 x 1-1/4 Woodruff

1шт.

618573R1

PIN,1/4" x 2 1/4", Coiled

1шт.
