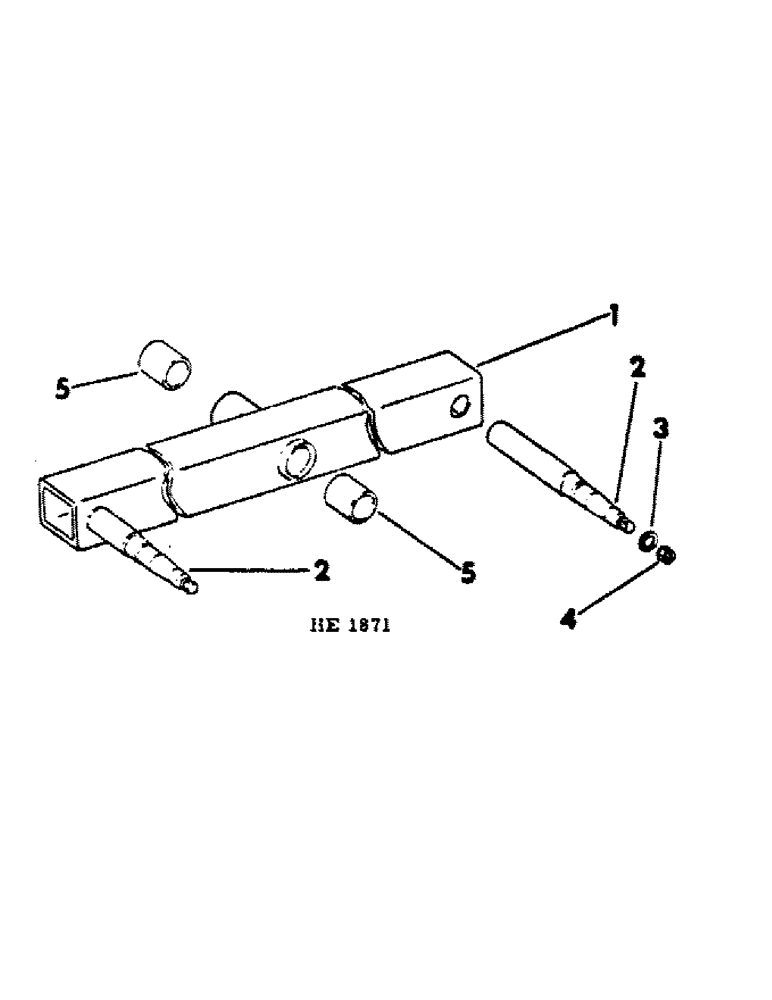

Запчасти Case IH 580 (B-22) - TANDEM WHEEL AXLE (00) - COMPLETE MACHINE

1

820981C91

AXLE

ASSY, tandem wheel, includes parts listed below

2шт.

2

820982C91

SPINDLE

ASSY, axle, includes 1-619373R1, washer, 1-619634R1, nut and 1-103387, pin

4шт.

3

619373R1

WASHER

.906 x 2.000 x .164

4шт.

4

612634R1

NUT

7/8-14 hex sltd

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

5

467529R1

BUSHING, axle pivot tube

4шт.
