Запчасти Case IH 580 (B-20) - APRON CHAIN STEEL DETACHABLE TYPE (00) - COMPLETE MACHINE

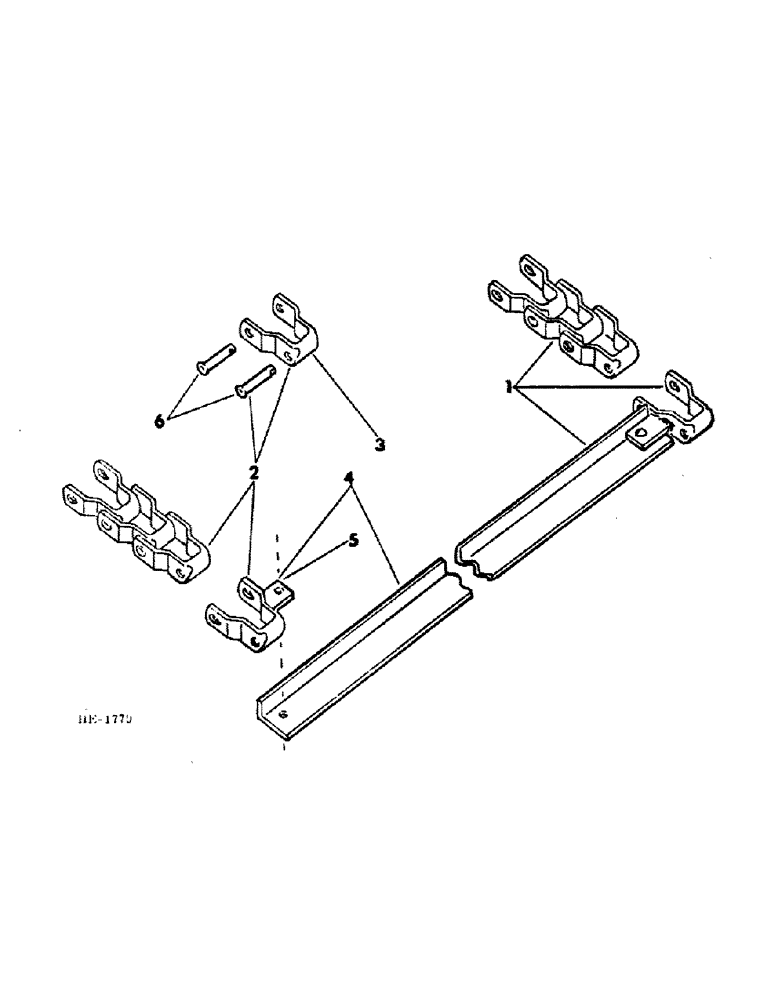

Схема запчастей Case IH 580 - (B-20) - APRON CHAIN STEEL DETACHABLE TYPE (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

820825C91

CHAIN (AG)

CHAIN ASSY, apron w/angles, 570, includes 1-820826C91, chain set, 16-820953C91, angle assy, and 32-106915, rivet

2шт.

1

820833C91

CHAIN (AG)

CHAIN ASSY, apron w/angles, 580, includes 1-820834C91, chain set, 19-820953C92, angle assy and 38-106915, rivet

2шт.

2

820826C91

SET

CHAIN SET, 667H apron, 570, includes 234-821017C1, link 32-821016C1 link, 33-821369C1, pin and 33-187352, pin

2шт.

2

820834C91

SET

CHAIN SET, 667H apron, 580, includes 266-821017C1, link, 38-821016C1 link, 39-821369C1, pin and 39-187352, pin

2шт.

3

821017C1

CHAIN LINK

LINK ASSY, connecting, (468), 570, includes 2-821369C1, pin and 2-187352, pin

1шт.

3

821017C1

CHAIN LINK

LINK ASSY, connecting, (532), 580 includes 2-821369C1, pin and 2-187352, pin

1шт.

4

820953C92

ANGLE

ASSY, apron, (32), 570, includes 2-821016C1, link, 4-821369C1, pin, 4-187352, pin and 2-106915, rivet

1шт.

4

820953C92

ANGLE

ASSY, apron, (38), 580, includes, 2-821016C1, link, 4-821369C1, pin, 4-187352, pin and 2-106915, rivet

1шт.

5

821016C1

LINK,Chain

LINK, apron chain attaching, (64), 570

1шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd, (64)

1шт.

5

821016C1

LINK,Chain

LINK, apron chain attaching, (76), 580

1шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd, (76)

1шт.

6

821369C1

PIN,7.79mm OD x 47.93mm L

chain coupler

1шт.

187352

COTTER PIN,1/8" x 3/4", Stainless

Pin, Split (Cotter), 1/8" x 3/4", Stainless

1шт.

Выбрано товаров: 14
