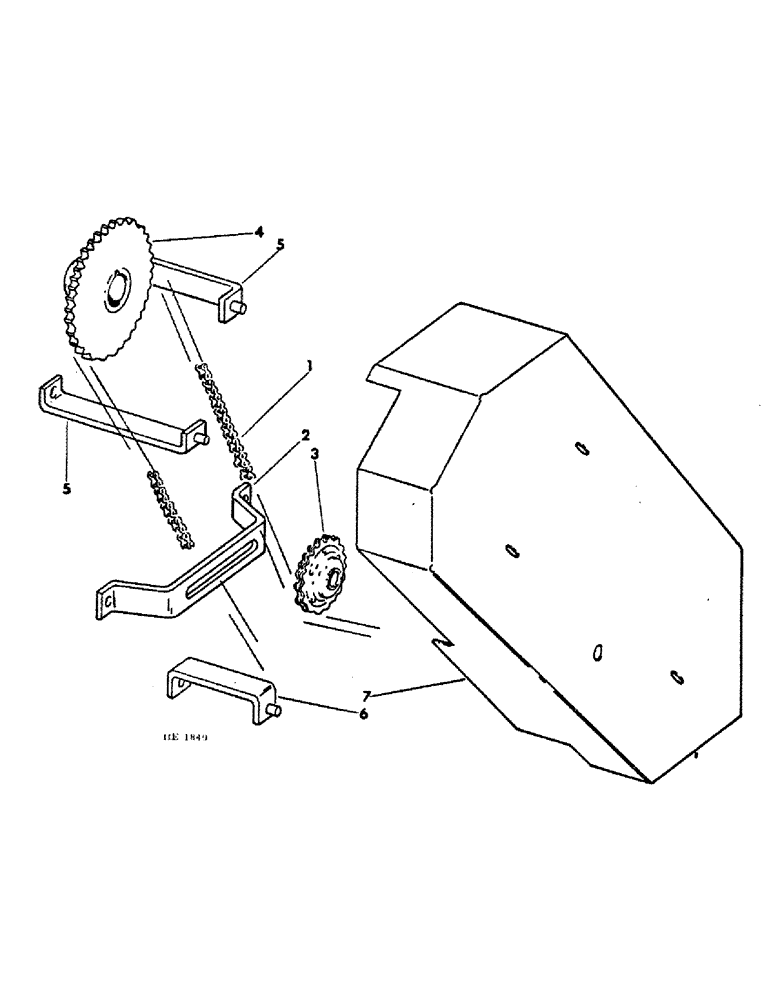

Запчасти Case IH 580 (B-15) - WIDESPREAD BEATER DRIVE (00) - COMPLETE MACHINE

1

CHAIN ASSY, beater drive, for service use 123 links of 3/4 inch pitch roller chain from A 10 foot roll of 611362R91, and add one offset link 612612R91, & one connecting link 611361R91

1шт.

2

593018R1

SUPPORT

beater chain tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

629972R91

DRIVE SPROCKET,15T

SPROCKET, 15T drive chain tightener, replaces 582389C91

1шт.

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT, 5/8-11 x 2-1/2 crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

.656 x 1.250 x .105

3шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

4

820889C1

SPROCKET ASSY.

SPROCKET ASSY, 51T beater driven

1шт.

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

618573R1

PIN,1/4" x 2 1/4", Coiled

1шт.

5

593023R11

BRACKET

SUPPORT ASSY, chain shield upper

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

820930C1

SUPPORT ASSY, chain shield lower

1шт.

7

820877C1

SHIELD ASSY, beater drive chain

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

.406 x 1.000 x .056

3шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

3шт.
