Запчасти Case IH 580 (B-12) - TWO SPEED APRON DRIVE (00) - COMPLETE MACHINE

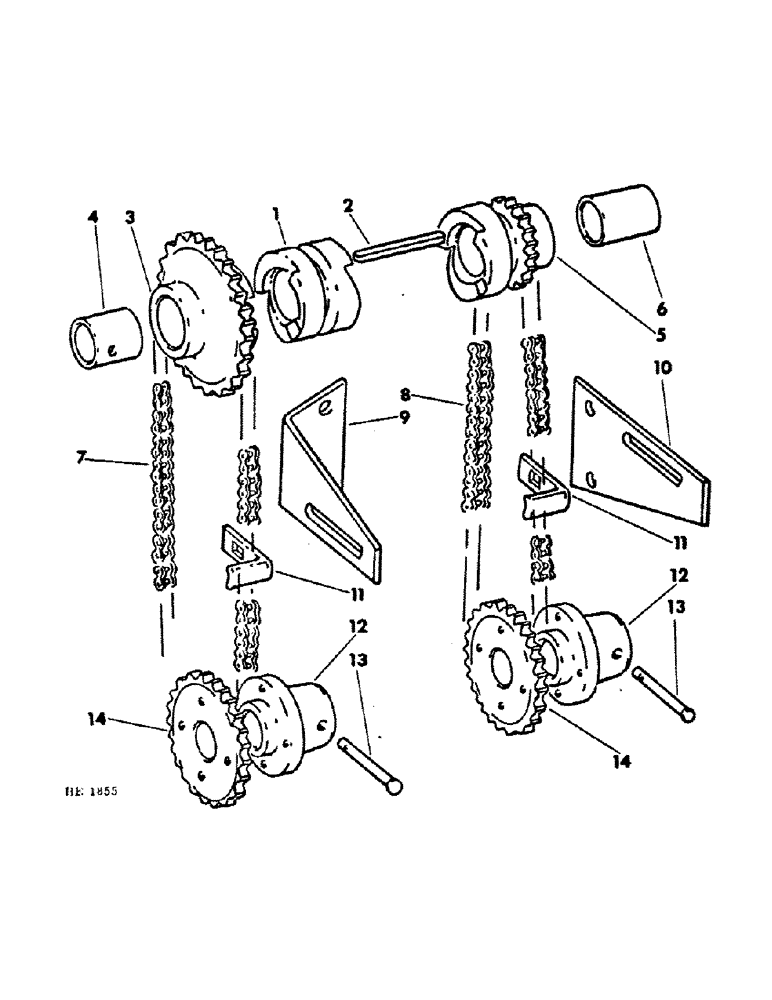

Схема запчастей Case IH 580 - (B-12) - TWO SPEED APRON DRIVE (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

820231C1

CLUTCH

apron drive

1шт.

2

820263C1

KEY

clutch guide

1шт.

3

820398C91

SPROCKET ASSY.

SPROCKET ASSY, 26T fast speed apron drive clutch, includes 1-820668C1 bushing

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 str lub self tapping

1шт.

23041R1

WASHER

1.156 x 1.500 x .054

2шт.

21877R1

WASHER

1.156 x 2.000 x .030

2шт.

4

820668C1

BUSHING

fast speed sprocket

1шт.

5

820482C91

SPROCKET ASSY.

SPROCKET ASSY, 14T slow speed apron drive clutch, includes 1-820585C1 bushing

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

1шт.

454319R1

RING

retaining

1шт.

23041R1

WASHER

1.156 x 1.500 x .054

2шт.

21877R1

WASHER

1.156 x 2.000 x .030

2шт.

6

820585C1

BUSHING

slow speed sprocket

1шт.

7

CHAIN ASSY, fast speed apron drive, use 61 links of 1/2 inch single pitch roller chain from A 10 foot roll, 1790D and add 1-1301D, connecting link and 2-1303D, offset links

1шт.

8

CHAIN ASSY, slow speed apron drive, use 67 links of 1/2 inch single pitch roller chain from A 10 foot roll, 1790D and add 1-1301D, connecting link

1шт.

9

820888C1

SUPPORT, fast speed chain tightener

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 crg

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

820887C1

BAR, slow speed tightener support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

821000C1

ADJUSTER

TIGHTENER, drive chain

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

12

820494C2

HUB

driven sprocket

2шт.

13

820973C1

PIN,5.59mm OD x 54.59mm L

hub shear

2шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

2шт.

14

820656C1

SPROCKET ASSY.

SPROCKET, 33T apron driven, regular

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

14

820929C1

SPROCKET ASSY.

SPROCKET, 52T apron driven, special slow speed

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

Выбрано товаров: 40
