Запчасти Case IH 580 (B-09[A]) - MITER GEAR CASE SUPPORT (00) - COMPLETE MACHINE

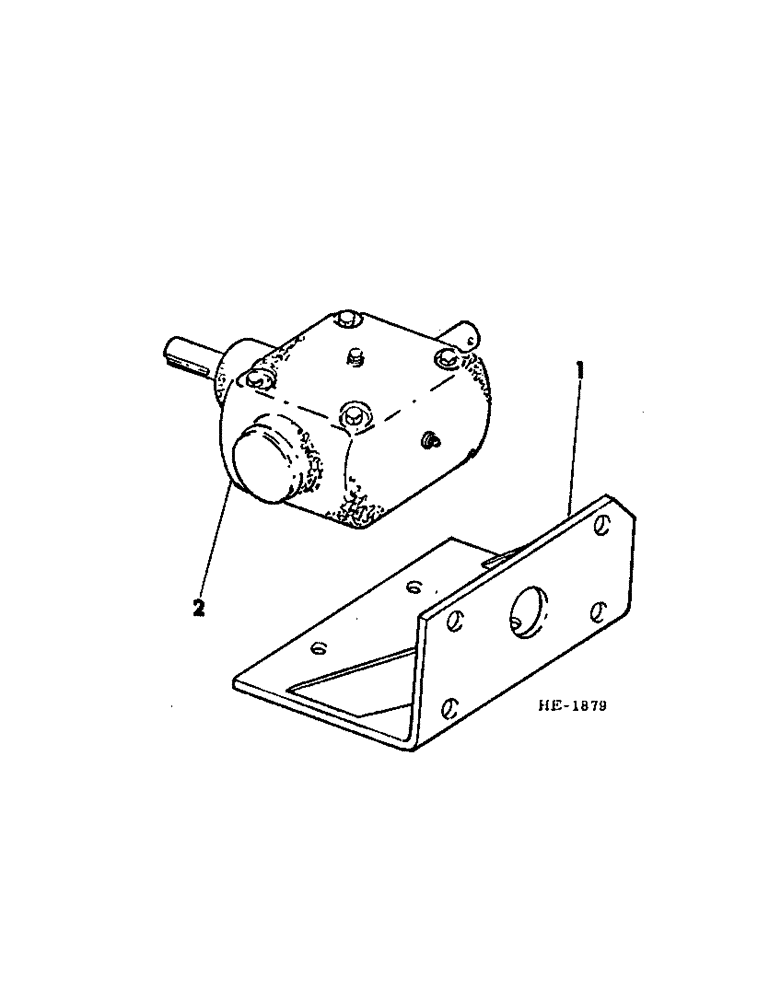

Схема запчастей Case IH 580 - (B-09[A]) - MITER GEAR CASE SUPPORT (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

592962R11

SUPPORT ASSY, gear case

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

592961R92

CASE

ASSY, miter gear, for component parts of this assy refer to miter gear case in this section of the parts catalogue

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Выбрано товаров: 7
