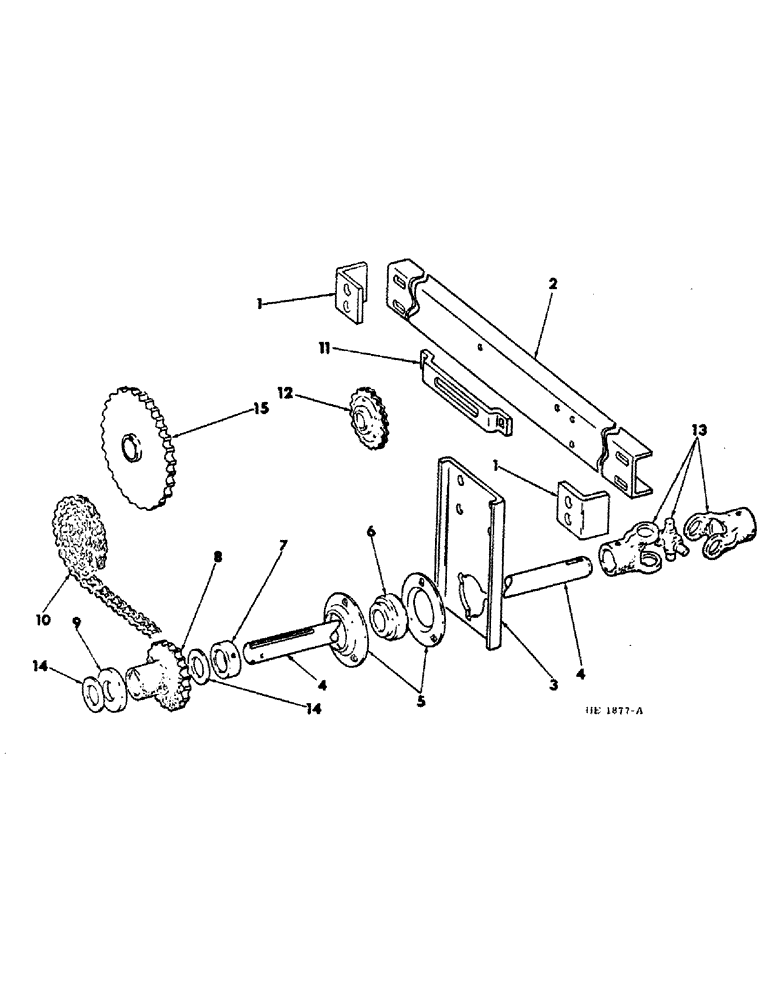

Запчасти Case IH 580 (B-06) - TRUCK MOUNTED FRONT DRIVE SHAFT (00) - COMPLETE MACHINE

1

ANGLE, brg channel mounting, welded to truck frame

2шт.

2

592941R1

CHANNEL, frt drive brg support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

.531 x 1.250 x .090

4шт.

3

592942R1

CHANNEL, drive shaft brg lower

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

598863R2

SHAFT, front drive

1шт.

20885R1

WASHER

1.156 x 2.000 x .054

4шт.

5

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, drive shaft brg

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

front drive shaft

1шт.

7

557115R11

COLLAR

COLLAR ASSY, brg locking, includes 1-115321, screw

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 cup-pt set

1шт.

8

592943R11

SPROCKET ASSY.

SPROCKET ASSY, 18T front drive shaft

1шт.

586879R1

KEY

5/16 x 2 sq straight

1шт.

657196R1

PIN

1/4 x 2 slted spring

1шт.

9

615255R1

WASHER, 1-5/32 x 2-1/4 x 5/16

2шт.

10

CHAIN ASSY, front drive, use 77 links of 3/4 inch pitch roller chain from A 10 foot roll 611362R91 and add 1-611361R91, connecting link and 1-612612R91, offset link

1шт.

11

592946R1

SUPPORT, drive chain tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

629972R91

DRIVE SPROCKET,15T

SPROCKET, 15T drive chain tightener replaces 582389R91

1шт.

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT, 5/8-11 x 2-1/4 crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

124574

WASHER, 5/8 lock

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

13

JOINT, pto universal, truck model, for component parts refer to pto universal coupling

1шт.

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

21407R1

SCREW

3/8-16 x 1-1/4 sq-hd cup-pt

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

14

20885R1

WASHER

1.156 x 2.000 x .054

4шт.

15

820785C1

SPROCKET ASSY.

SPROCKET ASSY, 32T driven

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.
