Запчасти Case IH 580 (B-04) - AXLE AND SUPPORTS, TRAIL BEHIND MODELS (00) - COMPLETE MACHINE

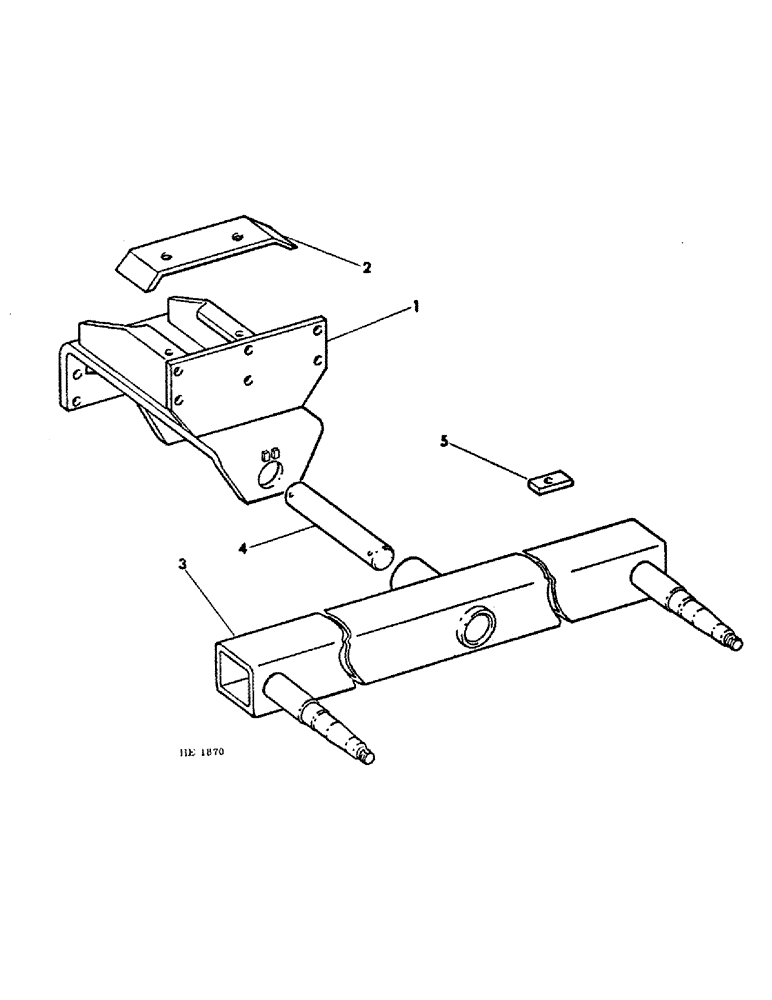

Схема запчастей Case IH 580 - (B-04) - AXLE AND SUPPORTS, TRAIL BEHIND MODELS (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

820849C1

SUPPORT ASSY, axle pivot

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

2

592910R1

SUPPORT

chain raising outer

2шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 no. 3 plow

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

820981C91

AXLE

ASSY, tandem wheel, for component parts refer to tandem wheel axle

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 str self-tapping

2шт.

4

592919R1

BAR

axle pivot

2шт.

19982R1

PIN,1/2" x 3 3/4", Coiled

4шт.

20886R1

WASHER

2.531 x 3.500 x .054

4шт.

5

820980C1

BAR, axle stop

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 17
