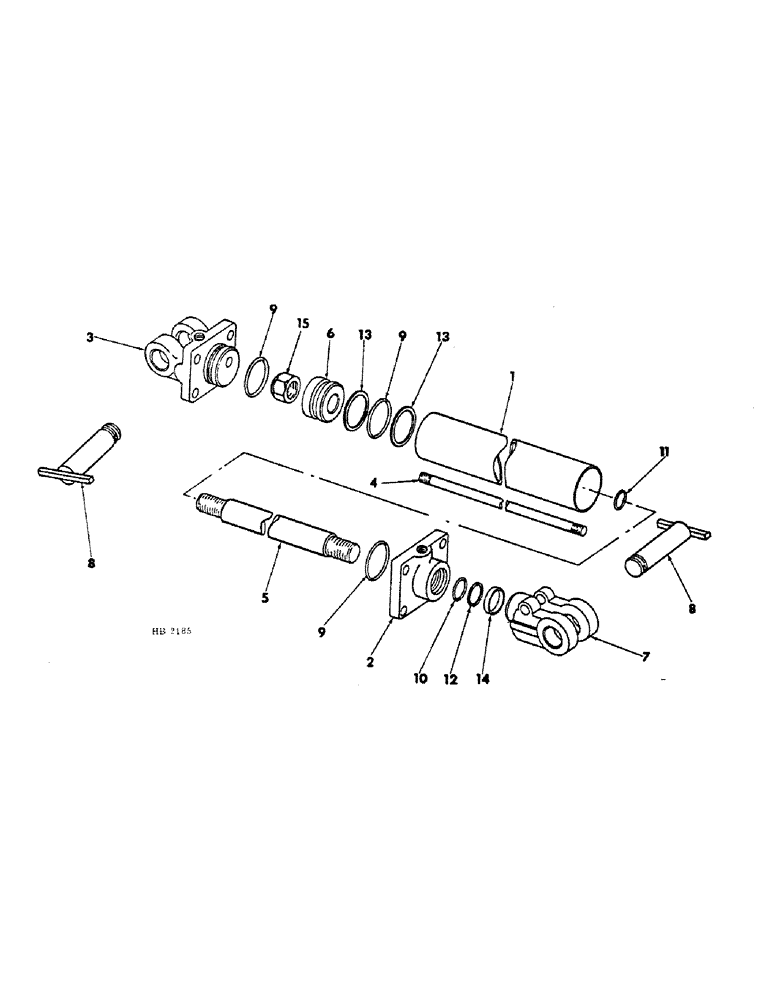

Запчасти Case IH 580 (B-63) - ENDGATE HYDRAULIC CYLINDER, 1976 SEASON AND SINCE, 2 X 8 DOUBLE ACTING Invalid section

820998C91

CYLINDER

ASSY, 2 x 8 da hydraulic, includes item no. 8

1шт.

821387C91

CYLINDER

ASSY, 2 x 8 da hydraulic less item no. 8, consists of

1шт.

1

821091C1

TUBE, cylinder

1шт.

2

821092C1

END, cylinder rod

1шт.

3

821093C1

YOKE, cylinder mounting

1шт.

4

821094C1

ROD, cylinder tie

4шт.

5

821095C1

ROD

piston

1шт.

6

821096C1

PISTON, cylinder

1шт.

7

821097C1

CLEVIS

piston rod

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

8

811018C1

CHANNEL

PIN, cylinder mounting

2шт.

480523R1

HAIR PIN COTTER

quick attachable

2шт.

9

461173R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1.625 x 2.000 x .188

3шт.

10

356005R1

O-RING,1.109" ID x 0.139" Width

1.125 x 1.375 x .125

1шт.

11

574069R1

O-RING,0.750" ID x .062"

.750 x .875 x .063

1шт.

12

WASHER, back-up 1-1/8 ID x 1/8 wide for service order 1-821098C1 kit

1шт.

13

WASHER, back-up 2 OD x 3/16 in wide, for service order 1-821098C1 kit

2шт.

14

SEAL, 1-1/8 ID x 1/8 in. wide dust for service order 1-821098C1 kit

1шт.

15

219754

BACK-UP RING

7/8-14 hex jam

1шт.

821098C1

KIT

cylinder seal service, consist of () seal (NSS), (2) washer (NSS), (1) washer (NSS), (3) o-ring 491173R1, (1) o-ring 356005R1, (1) o-ring 574069R1

1шт.
