Запчасти Case IH 580 (B-62) - END GATE HYDRAULIC CYLINDER, PRIOR TO 1976 SEASON Invalid section

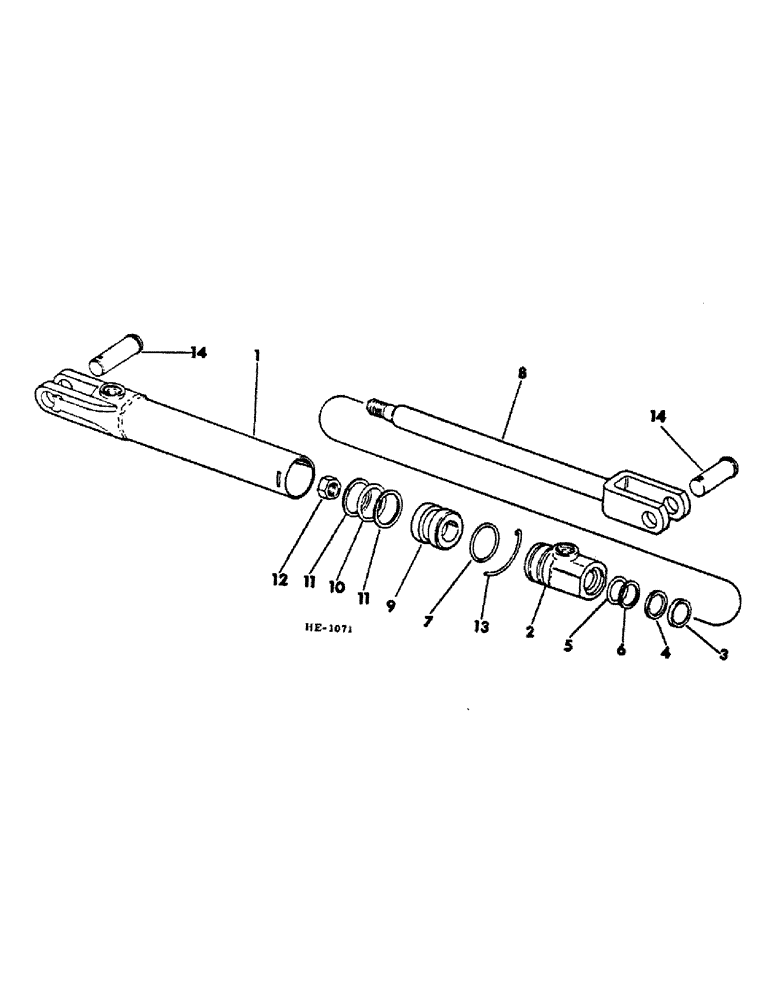

Схема запчастей Case IH 580 - (B-62) - END GATE HYDRAULIC CYLINDER, PRIOR TO 1976 SEASON Invalid section

Артикул

Название

Примечание

Количество

381833R93

CYLINDER ASSY.

CYLINDER ASSY, lift arm hydraulic, includes parts listed below

2шт.

1

381820R92

TUBE ASSY, cylinder

1шт.

2

381803R11

HEAD

ASSY, rod end, includes 1-354048R1 seal and 1-354049R1, retainer

1шт.

3

354049R1

RETAINER

seal

1шт.

4

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, cylinder piston rod

1шт.

5

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

hyd cylinder gland

1шт.

6

383669R1

BACK-UP RING

hyd cyl gland back-up

1шт.

7

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 x 1/8 rod end head

1шт.

8

381842R91

ROD

ASSY, piston

1шт.

9

381849R1

HEAD

piston

1шт.

10

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1.625 x 2.000 x .188

1шт.

11

381850R2

BACK-UP RING,Split, 41.68mm ID x 51.18mm OD x 2.39mm Thk

WASHER, piston head back-up

2шт.

12

385054R1

NUT

3/4-16 hex lock,opt w/385020R1, nut

1шт.

12

385020R1

NUT

3/4-16 hex lock, opt to use 1-385054R1, nut

1шт.

13

461180R1

RETAINER

RING, retaining

1шт.

14

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 x 2-3/4 headed

2шт.

520175R1

CLIP

PIN, quick-attachable cotter

2шт.

386685R91

KIT

KIT, hydraulic cylinder seal service, composed of (1) o-ring 381566R1, (2) washer 381850R1, (1) seal 354048R1, (1) retainer 354049R1, (1) o-ring 354047R1, (1) washer 383669R1, (1) o-ring 384251R1

1шт.

Выбрано товаров: 18
