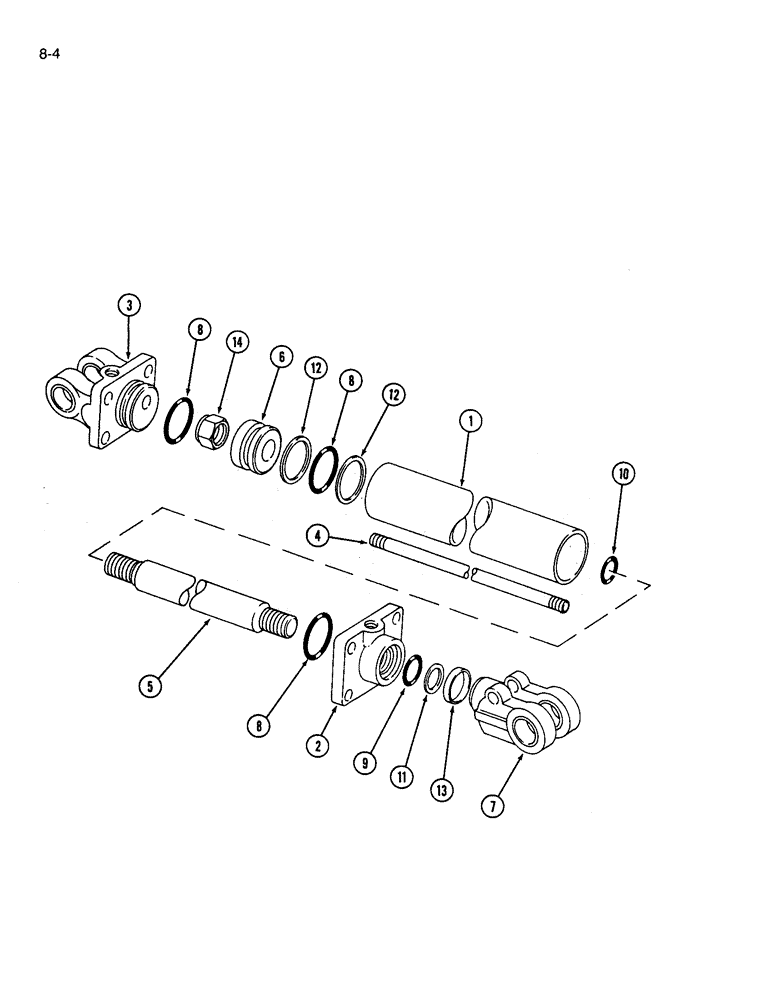

Запчасти Case IH 575 (8-04) - HYDRAULIC CYLINDER, DOUBLE ACTING, 2 ID X 8 INCH STROKE, ALCO (08) - HYDRAULICS

821387C91

CYLINDER

ASSEMBLY - 2 ID x 8 inch stroke (no longer available, order 1272144C91 cylinder assembly, page 8-9

1шт.

1

821091C1

TUBE - cylinder (No longer available, order 1272144C91 cylinder assembly

1шт.

2

821092C1

GLAND - cylinder (No longer available, order 1272144C91 cylinder assembly)

1шт.

3

821093C1

HEAD - cylinder, closed end (No longer available, order 1272144C91 cylinder assembly)

1шт.

4

821094C1

ROD - tie, cylinder (No longer available, order 1272144C91 cylinder assembly)

4шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

8шт.

5

821095C1

ROD

- piston

1шт.

6

821096C1

PISTON - cylinder (no longer available, order 1272144C91 cylinder assembly

1шт.

7

821097C1

CLEVIS

- rod end

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

8

238-5326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro

- piston, head and gland, 1-5/8 ID x 2 inch OD

3шт.

Part of seal kit P/N 821098C1.

1шт.

9

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

Piston rod -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

Part of seal kit P/N 821098C1.

1шт.

10

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 821098C1.

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston rod o-ring

1шт.

Part of seal kit P/N 821098C1.

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston o-ring

2шт.

Part of seal kit P/N 821098C1.

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 821098C1.

1шт.

14

25-1514

JAM NUT,Jam, 7/8"-14, G5

-hex, lock, 7/8 inch NC

1шт.

821098C1

KIT

- seal, Includes: Ref. 8 - 13

1шт.
