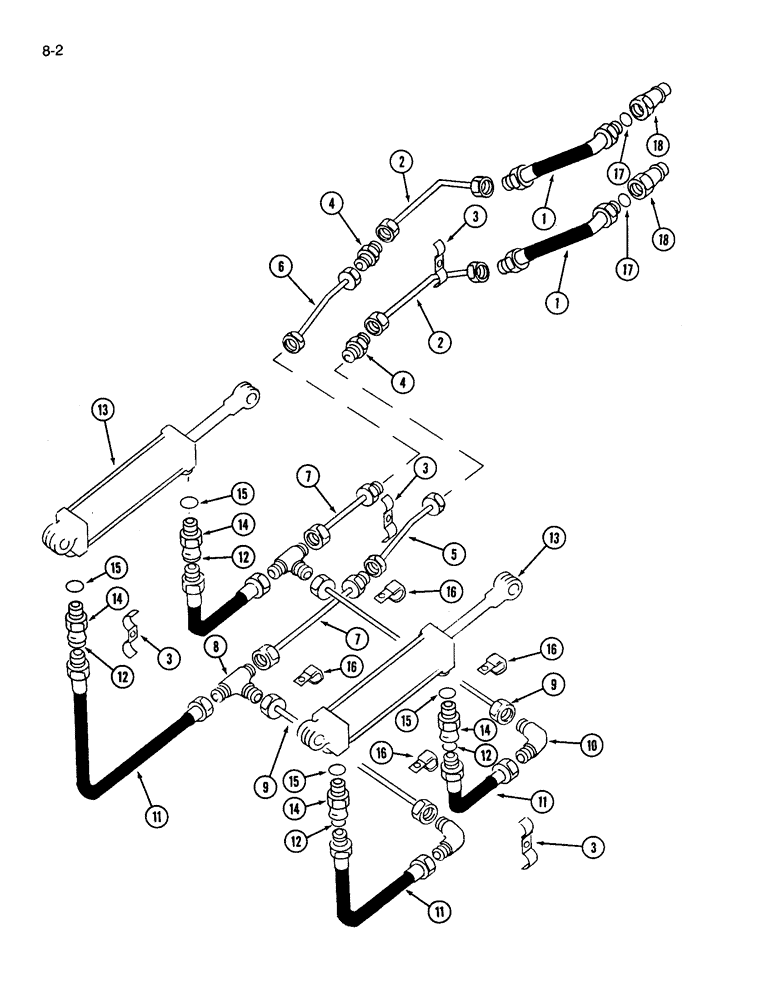

Запчасти Case IH 575 (8-02) - HYDRAULIC SYSTEM, END GATE (08) - HYDRAULICS

1

822368C1

HOSE

- hydraulic, 75 inch long, front

2шт.

2

822339C1

TUBE,12.7 mm OD, 1690, 140 mm Length

ASSEMBLY - front

2шт.

3

317054R1

CLAMP

- hydraulic tube (575 spreader)

4шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

3

317054R1

CLAMP

- hydraulic tube (595 spreader)

5шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

5шт.

492-11038

LOCK WASHER,3/8"

5шт.

425-106

NUT,3/8"-16, Cl 5

5шт.

4

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

ADAPTER - straight, 3/4-16 inch flare

2шт.

5

822459C1

TUBE,12.7 mm OD, 1235, 700 mm Length

ASSEMBLY - rear

1шт.

6

822458C1

TUBE,12.7 mm OD, 1430, 700 mm Length

ASSEMBLY - rear

1шт.

7

822461C1

TUBE,12.7 mm OD, 685 mm Length

ASSEMBLY - rear (595 spreader)

2шт.

8

9402982

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare

2шт.

9

822460C1

TUBE,12.7 mm OD, 1905 mm Length

ASSEMBLY - cross, left

2шт.

10

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 90 degree, 3/4-16 inch flare

2шт.

11

822369C1

HOSE

- hydraulic, 75 inch long, hydraulic cylinder

4шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - Alco, 2 x 8 inch (See page 8-5)

2шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - Prince, 2 x 8 inch (See page 8-7)

2шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 2 x 8 inch (See page 8-9)

2шт.

14

1252130C1

ADAPTER

- straight, 3/4-16 male x 9/16 inch female flare (Use with 1272144C91 IH cylinder assembly)

4шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD, Use with 1252130C1 adapter

4шт.

16

36216R1

CLAMP - hydraulic tube

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

18

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

2шт.

18

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type (For use with 66 Series tractors)

2шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.
