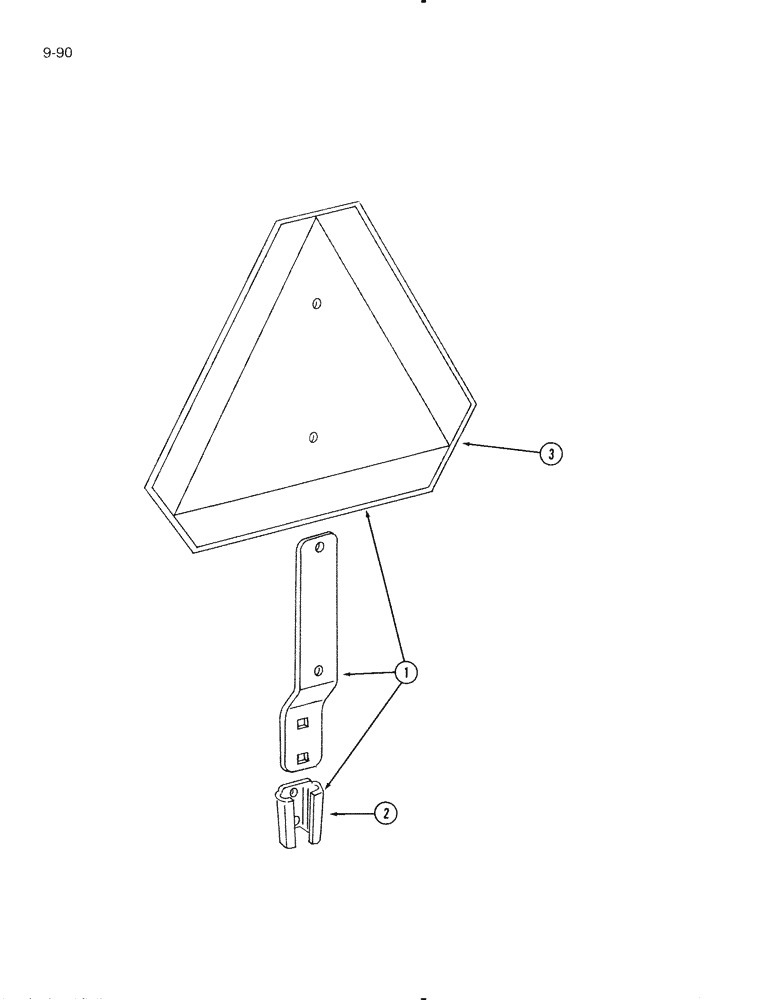

Запчасти Case IH 575 (9-90) - SLOW MOVING VEHICLE (SMV) EMBLEM (09) - CHASSIS/ATTACHMENTS

1

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle emblem, steel

1шт.

2

398976R1

BRACKET

- SMV emblem mounting

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

3

321-4311

DECAL

- SMV emblem (Replaces 407263R1)

1шт.
