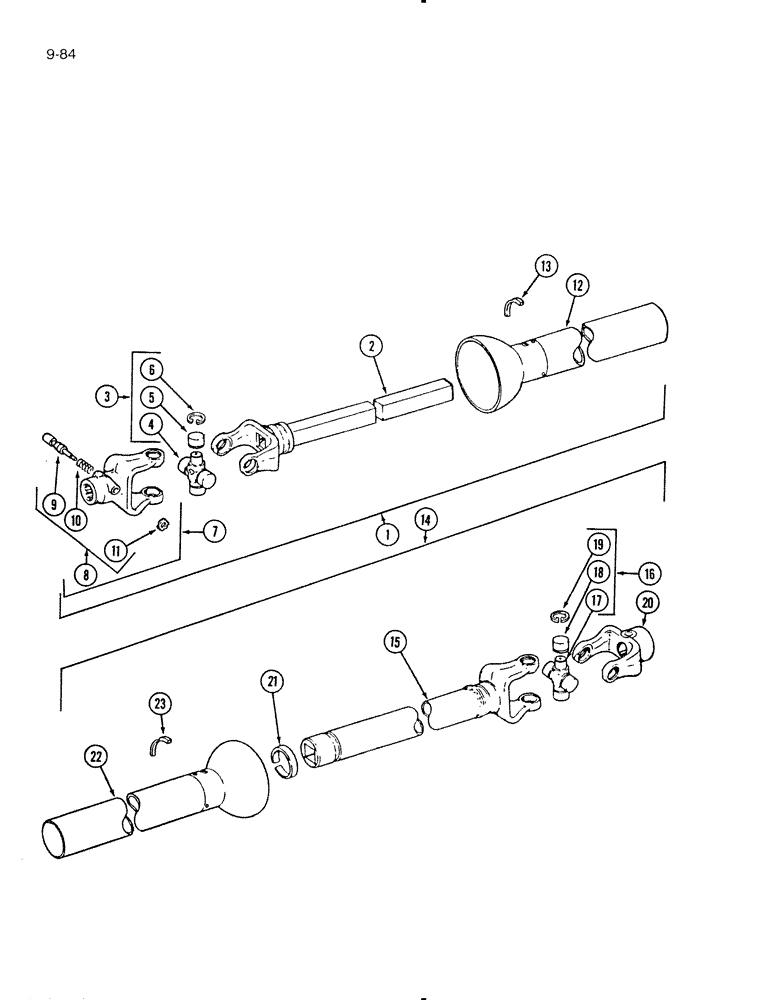

Запчасти Case IH 575 (9-84) - MAIN DRIVE UNIVERSAL JOINT, 540 RPM, ROCKWELL (09) - CHASSIS/ATTACHMENTS

1

820684C91

JOINT ASSEMBLY - universal, front half

1шт.

2

820217C1

YOKE

- with shaft

1шт.

REF # 2 - P/N 820217C1 YOKE W/SHAFT. BELIEVE P/N SB 820686C1 (SEE PAGE 9-33 IN THE 530, 540, 550 AND 560 MANURE SPREADER ITEM 1 & 2). JBEDFORD 7/6/99.

1шт.

3

757443

U-JOINT SPIDER

CROSS ASSEMBLY - center

1шт.

4

NSS

NOT SOLD SEPARAT

CROSS - center

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

5

669565R91

CAP

BEARING - center cross

4шт.

6

661657R1

RING

- retaining

4шт.

1986059C1

SNAP RING

RING - retaining

4шт.

7

459463R91

YOKE

ASSEMBLY - quick detachable

1шт.

8

455346R21

PIN

ASSEMBLY - locking

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - yoke lock (Order 45534R21 pin assembly)

1шт.

10

455347R1

VALVE SPRING

SPRING - lock pin

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- X, lock pin

1шт.

12

820688C1

SHIELD

- outer

1шт.

13

549626R1

BEARING

- shield, nylon

2шт.

14

820685C91

JOINT ASSEMBLY - universal, rear half

1шт.

15

820687C1

YOKE - with tube 17.75" Length

1шт.

16

757443

U-JOINT SPIDER

CROSS ASSEMBLY - center

1шт.

17

NSS

NOT SOLD SEPARAT

CROSS - center

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

18

669565R91

CAP

BEARING - center cross

4шт.

19

661657R1

RING

- retaining

4шт.

1986059C1

SNAP RING

RING - retaining

4шт.

20

820690C1

YOKE - with keyway

1шт.

21

58697C1

SHIELD

BUSHING - shield support

1шт.

22

820689C1

SHIELD

- inner

1шт.

23

549626R1

BEARING

- shield, nylon

2шт.
