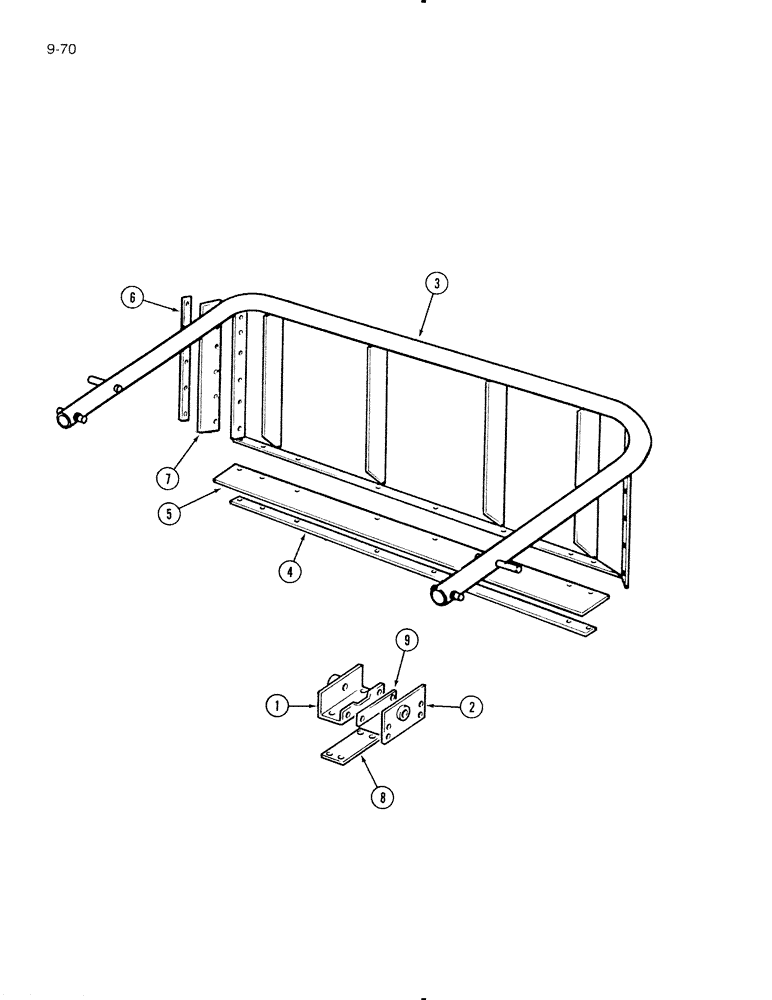

Запчасти Case IH 575 (9-70) - END GATE AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

822269C1

SUPPORT

ASSEMBLY - end gate, inner

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

2

822271C2

SUPPORT

ASSEMBLY - end gate, outer

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

3

822280C1

GUIDE

GATE ASSEMBLY - end

1шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

4

822286C1

BAR

- cover, bottom strip

1шт.

5

822287C1

STRIP

- bottom cover

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

7шт.

492-11038

LOCK WASHER,3/8"

7шт.

425-106

NUT,3/8"-16, Cl 5

7шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

822283C1

BAR

- cover, side strip

2шт.

7

822288C1

STRIP

- side cover

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

12шт.

492-11038

LOCK WASHER,3/8"

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

8

822197C1

BAR

- reinforcing, frame side

2шт.

9

822203C1

BAR

- spacer, end gate support

2шт.
