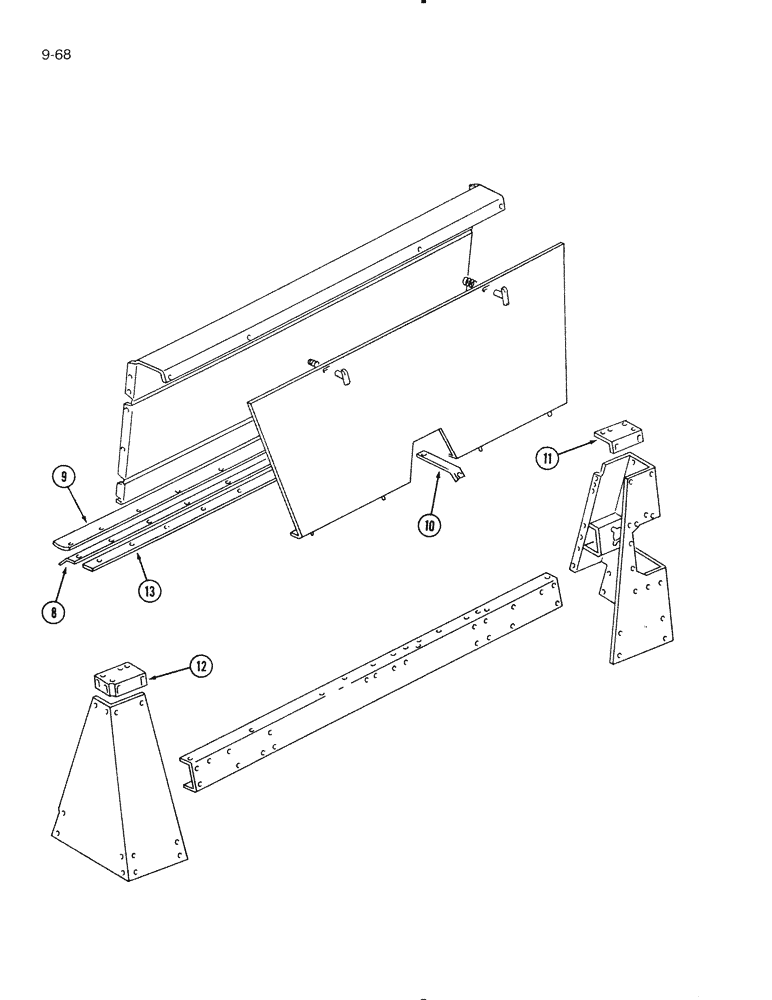

Запчасти Case IH 575 (9-68) - BOX FRONT (09) - CHASSIS/ATTACHMENTS

8

822238C1

SUPPORT

- end gate cover strip (Continued from previous page)

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

492-11038

LOCK WASHER,3/8"

7шт.

425-106

NUT,3/8"-16, Cl 5

7шт.

9

822237C1

STRIP

- end gate cover

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

10

822500C1

SUPPORT

- front side brace

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

11

822542C1

SUPPORT

- front corner, top, left (Use with 822151C1) support assembly, item 2)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

12

822543C1

SUPPORT

- front corner, top, right (Use with 822169C92 support assembly, item 3)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

13

822175C1

BAR

- retaining, cover strip

1шт.
