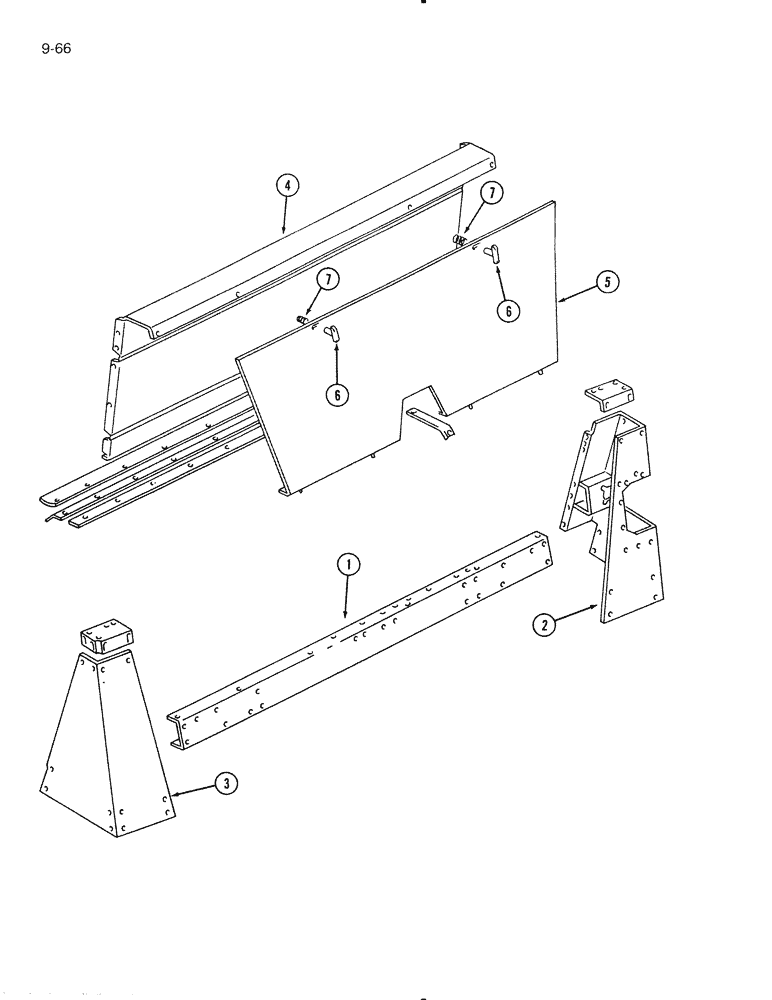

Запчасти Case IH 575 (9-66) - BOX FRONT (09) - CHASSIS/ATTACHMENTS

1

822148C1

CHANNEL

- bottom front, cross

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

2

822151C1

SUPPORT

ASSEMBLY - front corner, left (Order 822164C1 support assembly and 822542C1 support, item 1)

1шт.

2

822164C1

SUPPORT

ASSEMBLY - front corner, left

1шт.

3

822152C1

SUPPORT

ASSEMBLY - front corner, right (Order 822169C92 support assembly and 822543C1 support, item 12)

1шт.

3

822169C92

SUPPORT

ASSEMBLY - front corner, right

1шт.

1254170C1

DECAL

- caution (Not shown, see page 9-93 or 9-95)

1шт.

202707C2

PRODUCT GRAPHIC

DECAL - caution (Not shown, see page 9-93 or 9-95)

1шт.

1326215C1

DECAL

- warning (Not shown, see page 9-95)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

16шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

16шт.

492-11038

LOCK WASHER,3/8"

16шт.

425-106

NUT,3/8"-16, Cl 5

16шт.

4

822150C1

SIDE ASSY.

SIDE - box front

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

16шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

12шт.

492-11038

LOCK WASHER,3/8"

16шт.

425-106

NUT,3/8"-16, Cl 5

16шт.

5

822220C1

SHIELD

ASSEMBLY - box front

1шт.

6

593377R1

LATCH

- shield

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

7

M296

SPRING

- shield latch

2шт.
