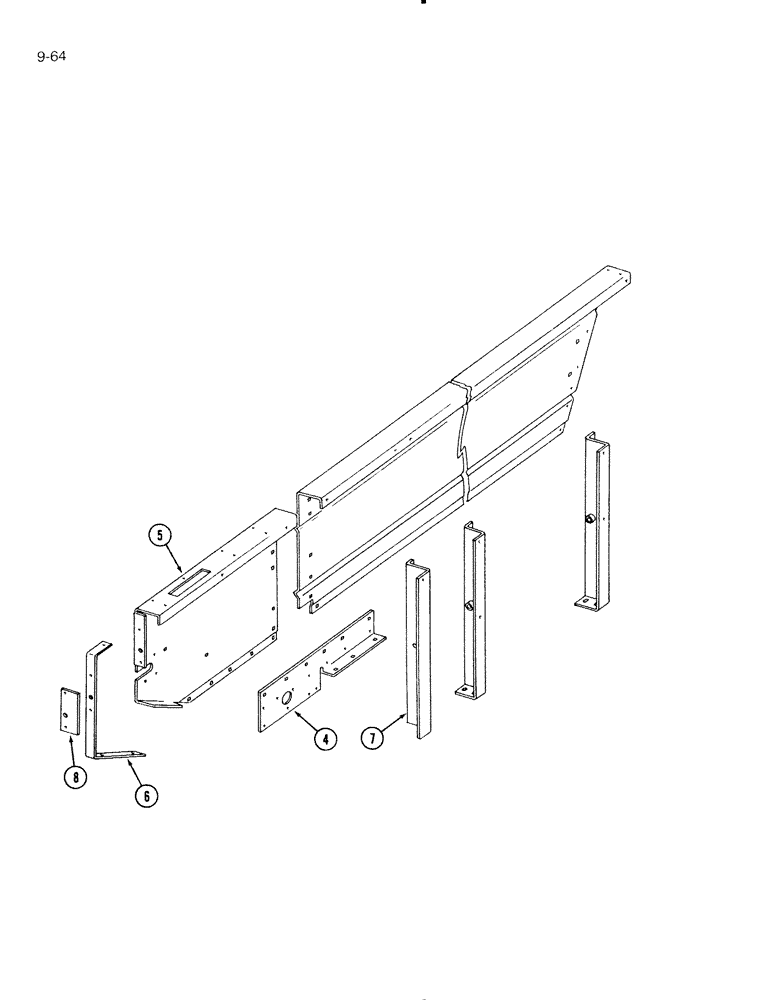

Запчасти Case IH 575 (9-64) - BOX SIDE, RIGHT, ALL SPREADERS (09) - CHASSIS/ATTACHMENTS

4

822199C1

SUPPORT

- rear, right (Continued from previous page)

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

5

822186C1

SIDE ASSY.

SIDE - rear, right

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

10шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

492-11038

LOCK WASHER,3/8"

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

6

822450C1

REINFORCEMENT

- rear, right

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

5шт.

492-11038

LOCK WASHER,3/8"

5шт.

425-106

NUT,3/8"-16, Cl 5

5шт.

7

822448C1

SUPPORT

- vertical, rear, right

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

8

822528C1

BAR

- reflector support (See page 9-93 or 9-95)

1шт.
