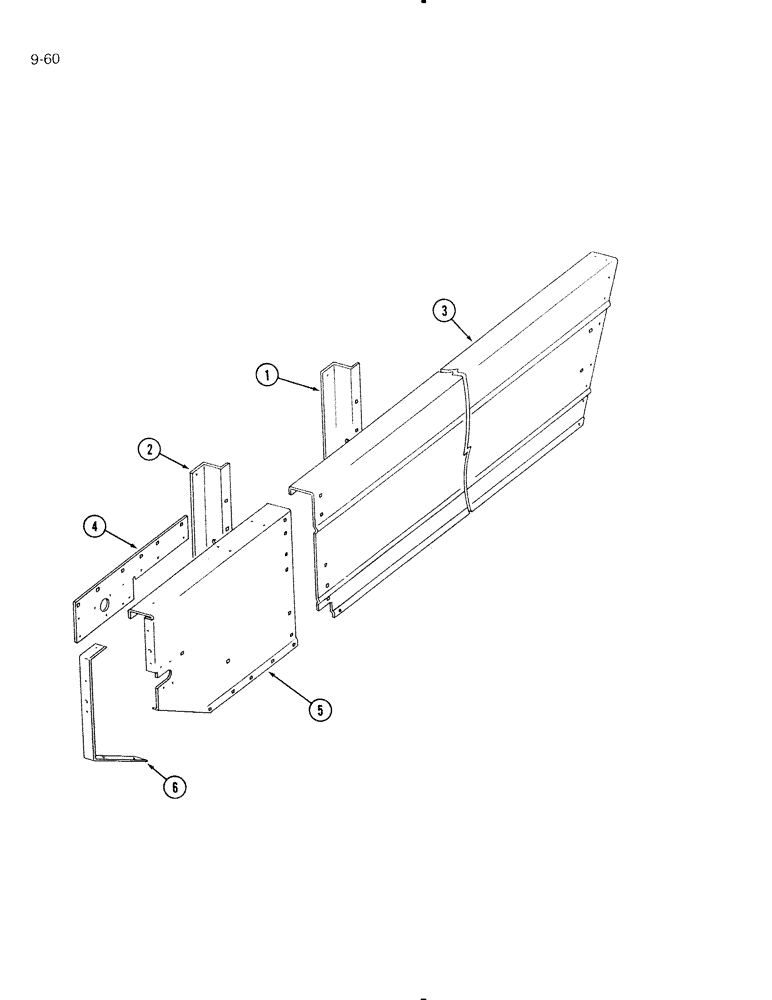

Запчасти Case IH 575 (9-60) - BOX SIDE, LEFT (09) - CHASSIS/ATTACHMENTS

1

822474C2

SUPPORT

- vertical, left

2шт.

2

822472C1

SUPPORT

- vertical, rear, left

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

8шт.

492-11038

LOCK WASHER,3/8"

10шт.

425-106

NUT,3/8"-16, Cl 5

10шт.

3

822343C1

SIDE ASSY.

SIDE - box, left

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

492-11038

LOCK WASHER,3/8"

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

1

822474C2

SUPPORT

- vertical, left

3шт.

2

822472C1

SUPPORT

- vertical, rear, left

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

11шт.

492-11038

LOCK WASHER,3/8"

13шт.

425-106

NUT,3/8"-16, Cl 5

13шт.

3

822167C1

SIDE ASSY.

SIDE - box, left

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

9шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

6шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

3шт.

492-11038

LOCK WASHER,3/8"

18шт.

425-106

NUT,3/8"-16, Cl 5

18шт.

4

822198C1

SUPPORT

- rear, left

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

5

822185C1

SIDE ASSY.

SIDE - rear, left

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

10шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

492-11038

LOCK WASHER,3/8"

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

6

822449C1

REINFORCEMENT

- rear, left

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

5шт.

492-11038

LOCK WASHER,3/8"

5шт.

425-106

NUT,3/8"-16, Cl 5

5шт.
