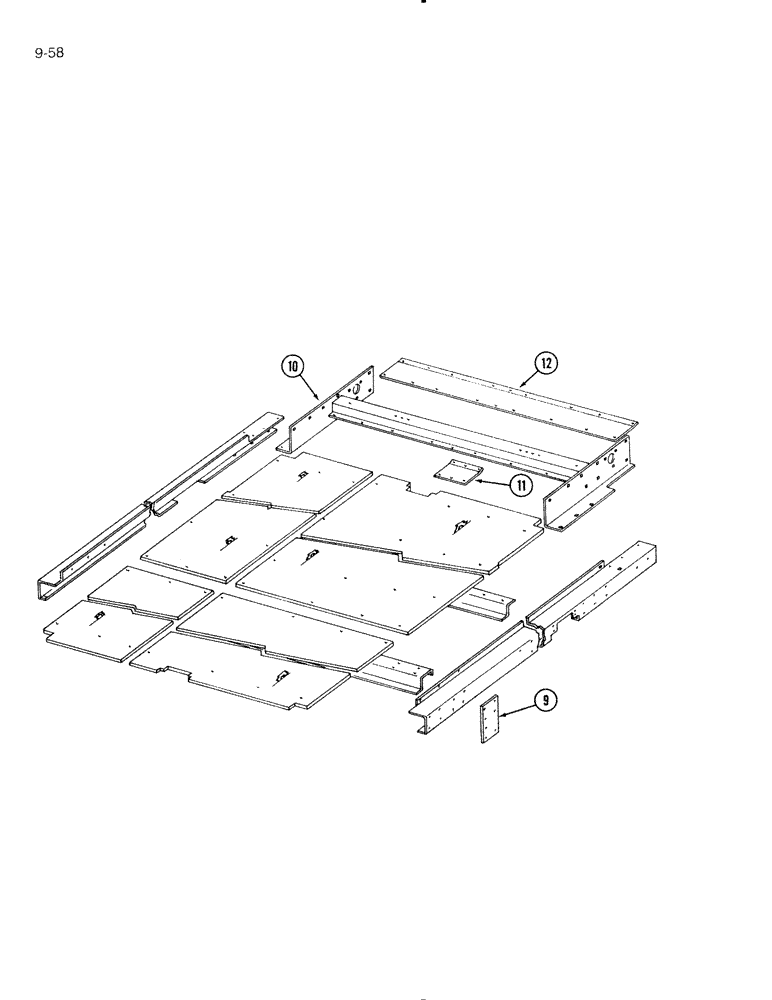

Запчасти Case IH 575 (9-58) - BOTTOM BOX (09) - CHASSIS/ATTACHMENTS

9

822112C1

BAR

- member support (Continued from previous page)

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

16шт.

492-11038

LOCK WASHER,3/8"

16шт.

425-106

NUT,3/8"-16, Cl 5

16шт.

10

822470C1

MEMBER

CROSSMEMBER ASSEMBLY - bottom rear, with 5 connecting holes (Order 822196C1 crossmember assembly, see Note A)

1шт.

10

822196C1

MEMBER

CROSSMEMBER ASSEMBLY - bottom rear, with 17 connecting holes (Replaces 822470C1)

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

16шт.

492-11038

LOCK WASHER,3/8"

18шт.

425-106

NUT,3/8"-16, Cl 5

18шт.

11

822173C1

BAR

- reinforcing, rear crossmember, with 5 connecting holes (Order 822188C1 reinforcing bar, see Note B)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

5шт.

492-11038

LOCK WASHER,3/8"

5шт.

425-106

NUT,3/8"-16, Cl 5

5шт.

12

822188C1

BAR

- reinforcing, rear crossmember, with 17 connecting holes (Replacing 822173C1)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

17шт.

425-106

NUT,3/8"-16, Cl 5

17шт.

492-11038

LOCK WASHER,3/8"

17шт.
