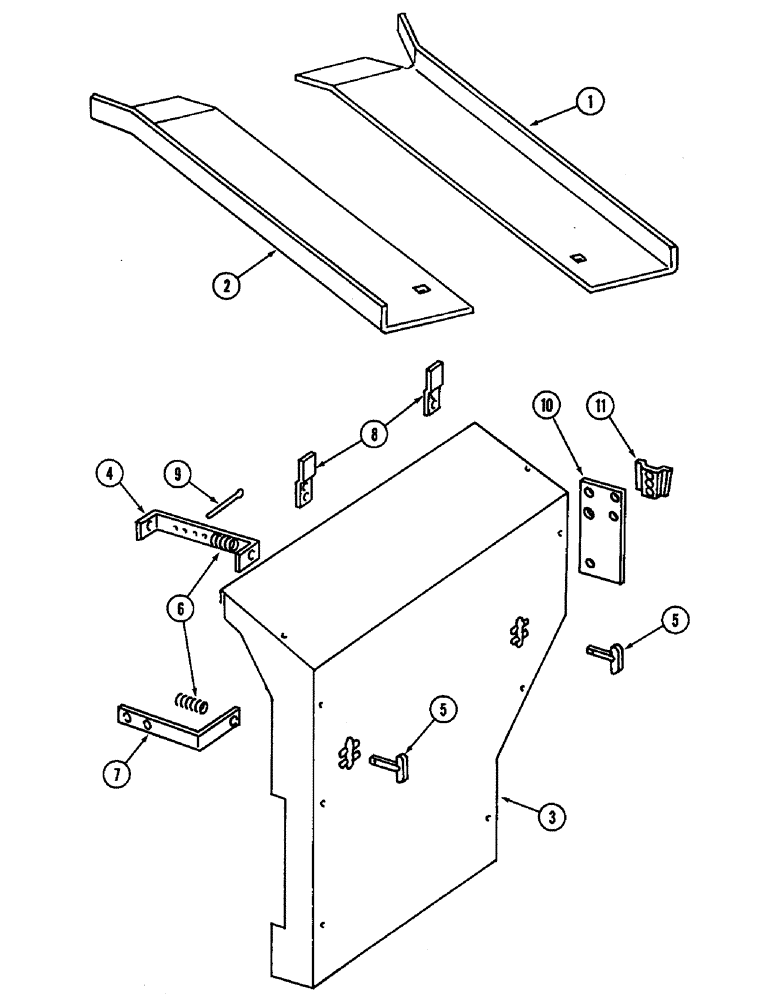

Запчасти Case IH 575 (9-46) - APRON CHAIN GUIDE AND REAR DRIVE SHIELD, APRON CHAIN GUIDE (09) - CHASSIS/ATTACHMENTS

APRON CHAIN GUIDE

1шт.

1

822110C1

GUIDE

- apron chain front, left

1шт.

2

822111C1

GUIDE

- apron chain front, right

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

REAR DRIVE SHIELD

1шт.

3

822254C2

SHIELD

ASSEMBLY - apron drive, rear

1шт.

4

822256C1

SUPPORT

- shield latch, rear, drive

2шт.

5

593377R1

LATCH

- shield, rear drive

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , Rear drive shield 1/8" x 3/4"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

Rear drive shield 3/8" x 1" x .063"

2шт.

6

M296

SPRING

- shield latch, rear drive

2шт.

7

822447C1

SUPPORT

- shield latch, front, rear drive

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Rear drive shield

2шт.

492-11038

LOCK WASHER,3/8"

rear drive shield 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

Rear drive shield 3/8"-16, G5

2шт.

8

820804C2

SUPPORT

- apron drive shield, upper, rear

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch, rear drive shield

4шт.

492-11038

LOCK WASHER,3/8"

rear drive shield 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

Rear drive shield 3/8"-16, G5

4шт.

9

820973C1

PIN,5.59mm OD x 54.59mm L

- sprocket shear, spare (Machines built between 1978 and 1979, see page 9-27), rear drive shield

4шт.

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , rear drive shield 1/16" x 1/2"

4шт.

9

432-1216

COTTER PIN,3/16" x 1"

Sprocket shear, spare (Machines built 1980 and after, see page 9-31), rear drive shield 3/16" x 1"

4шт.

10

822528C1

BAR

- reflector support (See page 9-93 or 9-95), rear drive shield

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Rear drive shield Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

rear drive shield 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

Rear drive shield 3/8"-16, G5

2шт.

11

398976R1

BRACKET

- SMV emblem mounting (See page 9-91), rear drive shield

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch, Rear drive shield

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch, rear drive shield

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Rear drive shield 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Rear drive shield

2шт.
