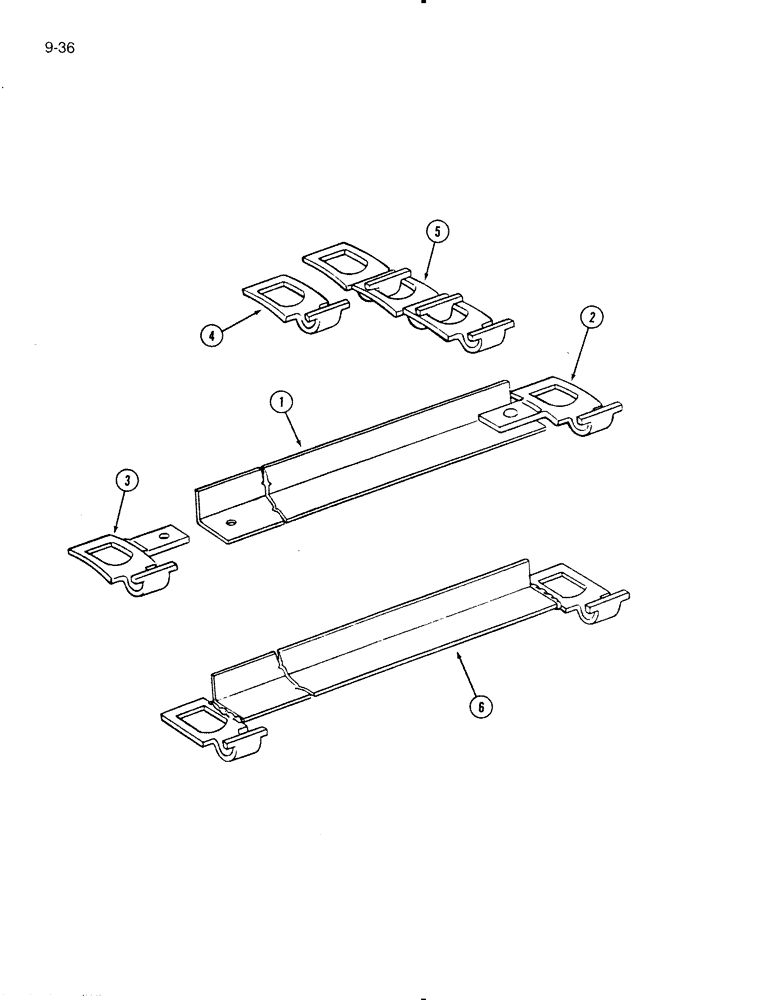

Запчасти Case IH 575 (9-36) - APRON CHAIN, HEAVY DUTY LOCK TYPE, LINKS WITH ONE CURVED INSIDE EDGE (09) - CHASSIS/ATTACHMENTS

1

821380C91

ANGLE

ASSEMBLY - apron, 575 Spreader

32шт.

821197C1

LINK ASSY.

LINK - attaching, left (Item 2), 575 spreader

1шт.

821198C1

LINK ASSY.

LINK - attaching, right (Item 3), 575 spreader

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 575 spreader

2шт.

2

821197C1

LINK ASSY.

LINK - attaching, left, 575 spreader

32шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 575 spreader

32шт.

3

821198C1

LINK ASSY.

LINK - attaching, right, 575 spreadera

32шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 575 spreader

32шт.

4

821196C1

LINK

- plain, 575 spreader

428шт.

5

CHAIN ASSEMBLY - apron with angles, 575 spreader

1шт.

821380C91

ANGLE

ASSEMBLY - apron (Item 1, see Note A), 575 spreader

16шт.

821196C1

LINK

- plain (Item 4, see Note A), 575 spreader

214шт.

6

ANGLE ASSEMBLY - with welded links (Order 821380C91, item 1), 575 spreader

1шт.

822377C91

CHAIN (CE)

KIT - heavy duty apron chain (For one complete machine), 575 spreader

1шт.

821380C91

ANGLE

ASSEMBLY - apron (Item 1), 575 spreader

32шт.

821196C1

LINK

- plain (Item 4), 575 spreader

428шт.

1

821380C91

ANGLE

ASSEMBLY - apron, 595 Spreader

42шт.

821197C1

LINK ASSY.

LINK - attaching, left (Item 2), 595 spreader

1шт.

821198C1

LINK ASSY.

LINK - attaching, right (Item 3), 595 spreader

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 595 spreader

2шт.

2

821197C1

LINK ASSY.

LINK - attaching, left, 595 spreader

42шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 595 spreader

42шт.

3

821198C1

LINK ASSY.

LINK - attaching, right, 595 spreader

42шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 595 spreader

42шт.

4

821196C1

LINK

- plain, 595 spreader

540шт.

5

CHAIN ASSEMBLY - apron with angles, 595 spreader

1шт.

821380C91

ANGLE

ASSEMBLY - apron (Item 1, see Note B), 595 spreader

21шт.

821196C1

LINK

- plain (Item 4, see Note B), 595 spreader

270шт.

6

ANGLE ASSEMBLY - with welded links (Order 821380C91, item 1), 595 spreader

1шт.

822378C91

PACKAGE

KIT - heavy duty apron chain (For one complete machine), 595 spreader

1шт.

821380C91

ANGLE

ASSEMBLY - apron (Item 1), 595 spreader

42шт.

821196C1

LINK

- plain (Item 4), 595 spreader

540шт.
