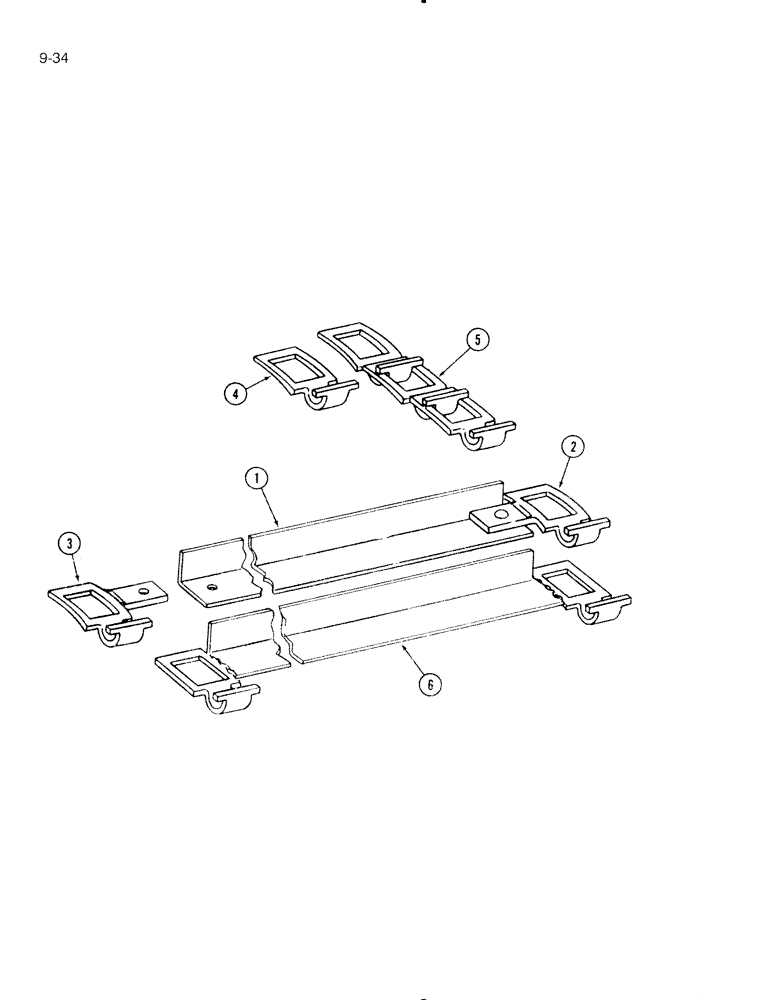

Запчасти Case IH 575 (9-34) - APRON CHAIN, HEAVY DUTY LOCK TYPE, LINKS WITH PARALLEL INSIDE EDGES (09) - CHASSIS/ATTACHMENTS

1

822405C91

ANGLE

ASSEMBLY - apron, 575 Spreader

32шт.

821941C1

LINK

- attaching, left (Item 2), 575 spreader

1шт.

821942C1

LINK

- attaching, right (Item 3), 575 spreader

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 575 spreader

2шт.

REF#1 PART MEASURES 28.7 731MM 10/25/96

1шт.

2

821941C1

LINK

- attaching, left, 575 spreader

32шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 575 spreader

32шт.

3

821942C1

LINK

- attaching, right, 575 spreader

32шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 575 spreader

32шт.

4

821940C1

LINK

- plain, 575 spreader

432шт.

5

CHAIN ASSEMBLY - apron with angles, 575 spreader

1шт.

822405C91

ANGLE

ASSEMBLY - apron (Item 1, see Note A), 575 spreader

16шт.

821940C1

LINK

- plain (Item 4, see Note A), 575 spreader

216шт.

6

ANGLE ASSEMBLY - with welded links (Order 822405c91, item 1), 575 spreader

1шт.

821819C91

PACKAGE

KIT - heavy duty apron chain (For one complete machine), 575 spreader

1шт.

822405C91

ANGLE

ASSEMBLY - apron (Item 1), 575 spreader

32шт.

821940C1

LINK

- plain (Item 4), 575 spreader

432шт.

1

822405C91

ANGLE

ASSEMBLY - apron, 595 Spreader

40шт.

821941C1

LINK

- attaching, left (Item 2), 595 spreader

1шт.

821942C1

LINK

- attaching, right (Item 3), 595 spreader

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 595 spreader

2шт.

2

821941C1

LINK

- attaching, left, 595 spreader

40шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 595 spreader

40шт.

3

821942C1

LINK

- attaching, right, 595 spreader

40шт.

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, 595 spreader

40шт.

4

821940C1

LINK

- plain, 595 spreader

548шт.

5

CHAIN ASSEMBLY - apron with angles, 595 spreader

1шт.

822405C91

ANGLE

ASSEMBLY - apron (Item 1, see Note B), 595 spreader

20шт.

821940C1

LINK

- plain (Item 4, see Note B), 595 spreader

274шт.

6

ANGLE ASSEMBLY - with welded links (Order 822405c91, item 1), 595 spreader

1шт.

821820C91

PACKAGE

KIT - heavy duty apron chain (For one complete machine), 595 spreader

1шт.

822405C91

ANGLE

ASSEMBLY - apron (Item 1), 595 spreader

40шт.

821940C1

LINK

- plain (Item 4), 595 spreader

548шт.
