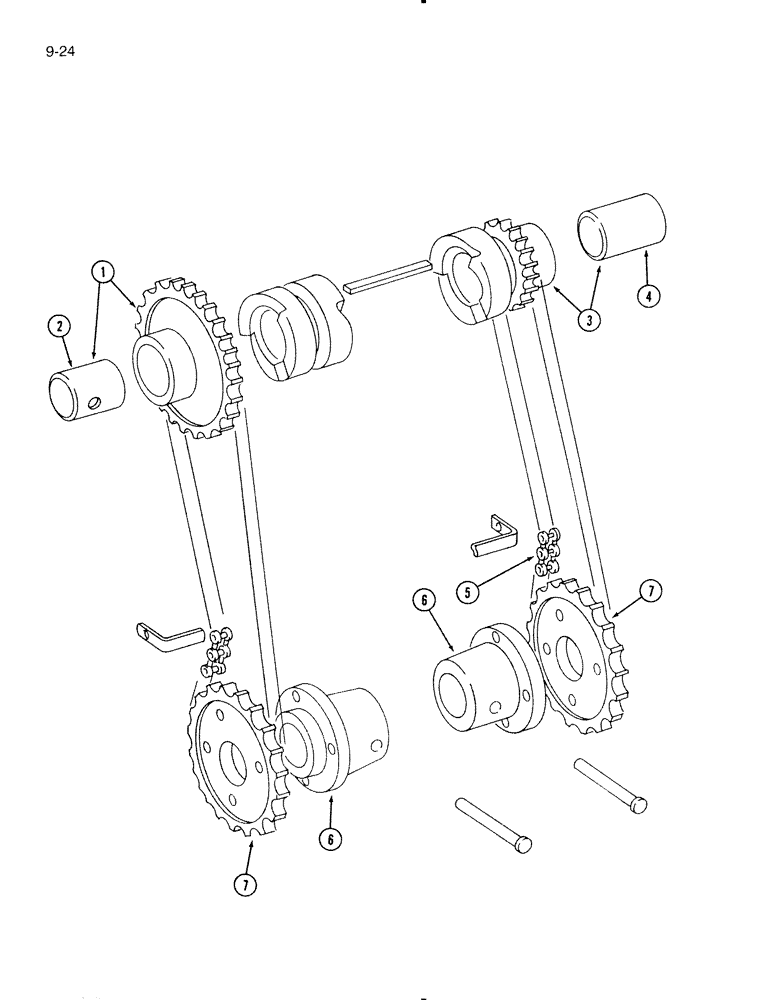

Запчасти Case IH 575 (9-24) - TWO SPEED APRON DRIVE, WITHOUT SIDE BEARING SUPPORT, MACHINES BUILT BETWEEN 1978 AND1979 (09) - CHASSIS/ATTACHMENTS

1

1281374C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 26 tooth, apron drive clutch (Fast speed, replaces 820398C91 sprocket assembly)

1шт.

2

820668C1

BUSHING

- sprocket

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, 1/8 inch PT

1шт.

F62235

SNAP RING,#112, Ext

Ring, Snap, , pin (replaces 454319R1) #112, Ext

2шт.

495-81084

WASHER,1.16" ID x 1.5" OD x 0.06" Thk

- flat, 1-5/32 a 1-1/2 x 1/16 inch

1шт.

495-81193

WASHER,1.16" ID x 2" OD x 0.03" Thk

- flat, 1-5/32 x 2 x 1/32 inch

1шт.

3

820482C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 14 tooth, apron drive clutch (Slow speed)

1шт.

4

820585C1

BUSHING

- sprocket

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4 inch NF

1шт.

F62235

SNAP RING,#112, Ext

Ring, Snap, , pin (replaces 454319R1) #112, Ext

2шт.

495-81084

WASHER,1.16" ID x 1.5" OD x 0.06" Thk

- flat, 1-5/32 x 1-1/2 x 1/16 inch

1шт.

495-81193

WASHER,1.16" ID x 2" OD x 0.03" Thk

- flat, 1-5/32 x 2 x 1/32 inch

1шт.

5

CHAIN ASSEMBLY - 14 tooth drive to 26 tooth driven (Standard slow speed)

1шт.

1790D

CHAIN (AG)

CHAIN - roller, 1/2 inch pitch x 10 foot roll (Use 59 links)

1шт.

1301D

CHAIN LINK

LINK - connecting

1шт.

1303D

LINK

- offset

1шт.

5

CHAIN ASSEMBLY - 14 tooth drive to 33 tooth driven (Optional slow speed)

1шт.

1790D

CHAIN (AG)

CHAIN - roller, 1/2 inch pitch x 10 foot roll (Use 63 links)

1шт.

1301D

CHAIN LINK

LINK - connecting

1шт.

1303D

LINK

- offset

1шт.

5

CHAIN ASSEMBLY - 14 tooth drive to 41 tooth driven (Optional slow speed)

1шт.

1790D

CHAIN (AG)

CHAIN - roller, 1/2 inch pitch x 10 foot roll (Use 69 links)

1шт.

1301D

CHAIN LINK

LINK - connecting

1шт.

1303D

LINK

- offset

1шт.

821594C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 26 tooth, standard (Fast or slow speed)

1шт.

6

820494C2

HUB

- sprocket connecting

1шт.

7

820928C1

SPROCKET ASSY.

SPROCKET - 26 tooth, standard

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NF x 3/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

820579C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 33 tooth, optional (Fast or slow speed)

1шт.

6

820494C2

HUB

- sprocket connecting

1шт.

7

820656C1

SPROCKET ASSY.

SPROCKET - 33 tooth, optional

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NF x 3/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

820653C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 41 tooth, optional (Fast or slow speed)

1шт.

6

820494C2

HUB

- sprocket connecting

1шт.

7

820237C1

SPROCKET ASSY.

SPROCKET - 41 tooth, optional

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NF x 3/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
