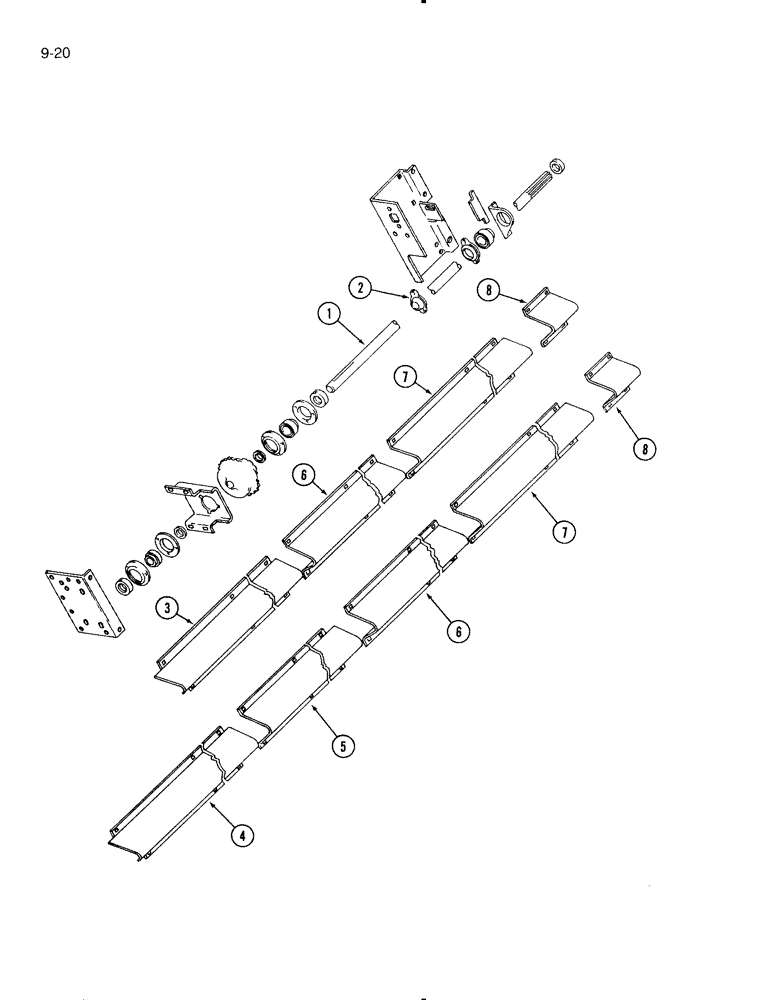

Запчасти Case IH 575 (9-20) - SIDE DRIVE AND SHIELDS, 575 SPREADER (09) - CHASSIS/ATTACHMENTS

1

822304C2

SHAFT

- side drive, 575 Spreader

1шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-9/16 x 3/64 inch, 575 spreader

1шт.

2

822527C91

HOUSING ASSY.

BEARING - side drive shaft, center and rear, 575 spreader

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, 575 spreader 1/4"-28 NPT x .54" lg

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch 4, 575 spreader

4шт.

492-11038

LOCK WASHER,3/8"

575 spreader 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

575 spreader 3/8"-16, G5

4шт.

3

822342C1

SHIELD

- side drive shaft, front, 575 spreader

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch, 575 spreader

6шт.

492-11038

LOCK WASHER,3/8"

575 spreader 3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

575 spreader 3/8"-16, G5

6шт.

1

822232C2

SHAFT

- side drive, 595 Spreader

1шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-9/16 x 3/64 inch, 595 spreader

1шт.

2

822527C91

HOUSING ASSY.

BEARING - side drive shaft, center and rear, 595 spreader

3шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, 595 spreader 1/4"-28 NPT x .54" lg

3шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch, 595 spreader

6шт.

492-11038

LOCK WASHER,3/8"

595 spreader 3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

595 spreader 3/8"-16, G5

6шт.

4

822233C1

SHIELD

- side drive shaft, front, 595 spreader

1шт.

5

822234C1

SHIELD

- side drive shaft, 595 spreader

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch, 595 spreader

12шт.

492-11038

LOCK WASHER,3/8"

595 spreader 3/8"

12шт.

425-106

NUT,3/8"-16, Cl 5

595 spreader 3/8"-16, G5

12шт.

6

822235C1

SHIELD

- side drive shaft, intermediate, All Spreaders

1шт.

7

822236C1

SHIELD

- side drive shaft (Not for use with end gate attachment, spreaders built 1980 and after), All Spreaders

1шт.

8

822412C1

SHIELD

- side drive shaft, rear, All Spreaders

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch, all spreaders

16шт.

492-11038

LOCK WASHER,3/8"

all spreaders 3/8"

16шт.

425-106

NUT,3/8"-16, Cl 5

All spreaders 3/8"-16, G5

16шт.
