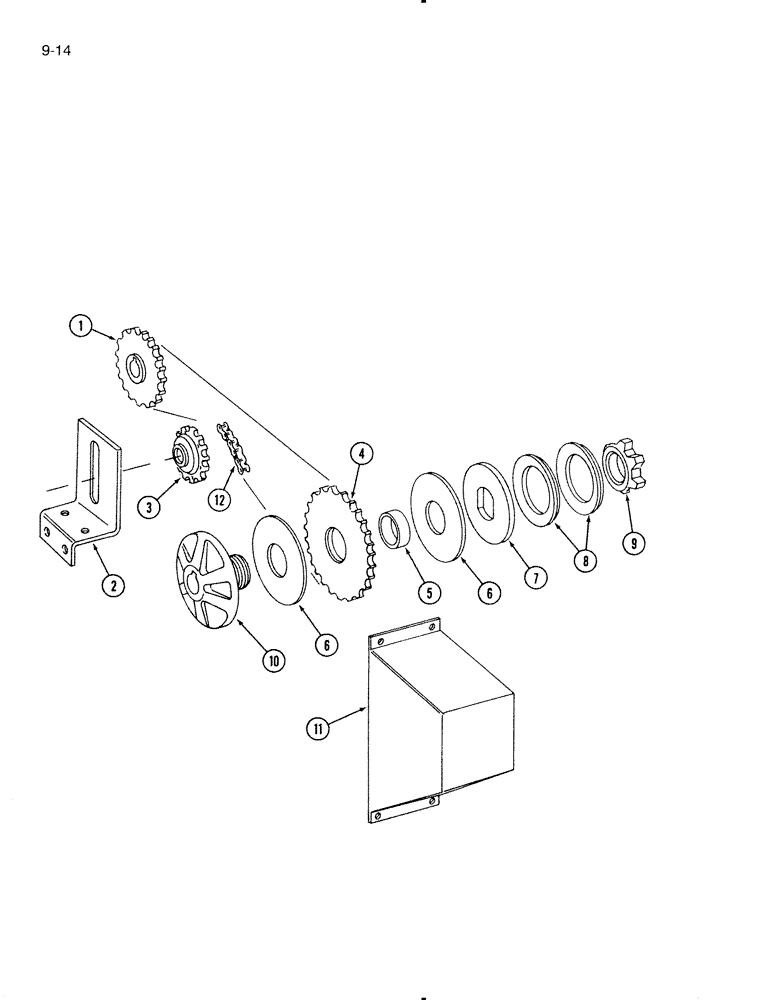

Запчасти Case IH 575 (9-14) - MAIN DRIVE CHAIN AND CLUTCH, 540 RPM (09) - CHASSIS/ATTACHMENTS

1

822140C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - 18 tooth, main drive (For connecting parts, see page 9-11)

1шт.

Q26

KEY,1/4" Sq x 1 1/4", Par

- square, parallel, 1/4 x 1-1/4 inch

1шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-9/16 x 2 x 3/64 inch

3шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

2

822128C1

SUPPORT

- main drive chain idler

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

3

629972R91

DRIVE SPROCKET,15T

SPROCKET - 15 tooth, drive chain idler

1шт.

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/4 inch

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

- square hole, 21/32 x 1-1/2 x 3/32 inch

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

4

820247C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 31 tooth, main drive clutch, Includes: Ref. 5

1шт.

5

592954R2

BUSHING

- clutch sprocket

1шт.

6

95909C1

FACING

- clutch (Replaces 592952R1)

2шт.

7

592955R1

PLATE

- clutch

1шт.

8

820669C1

WASHER

- clutch

3шт.

9

592957R1

COLLAR

- clutch locking

1шт.

10

592951R2

HUB

- clutch

1шт.

T14185

KEY - square, parallel, 1/4 x 2-3/4 inch 1/4" Sq x 2 3/4", Par

1шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch

1шт.

11

822228C1

SHIELD

ASSEMBLY - clutch

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

12

CHAIN ASSEMBLY - main drive

1шт.

611362R91

CHAIN (AG)

CHAIN - roller, 3/4 inch pitch x 10 foot roll (Use 133 links)

1шт.

611361R91

DRAG LINK

LINK - connection

1шт.

612612R91

CHAIN LINK

LINK - offset

1шт.
