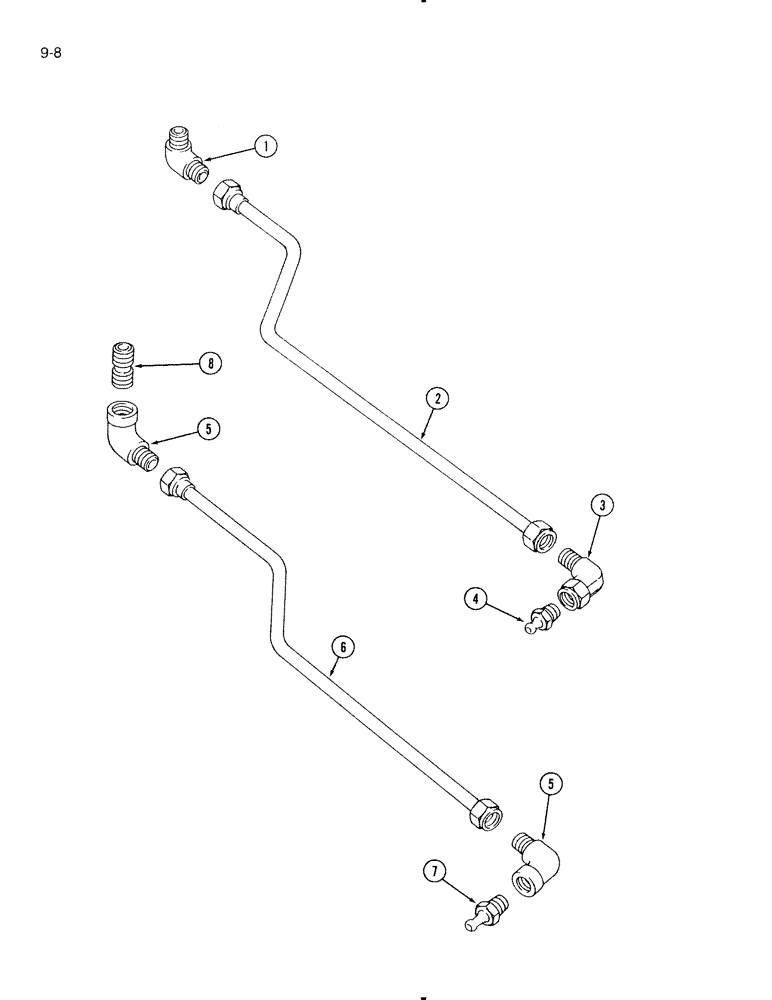

Запчасти Case IH 575 (9-08) - AXLE LUBRICATION, MACHINES BUILT IN 1978, ELBOW WITHOUT NIPPLE (09) - CHASSIS/ATTACHMENTS

1

9402863

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/8"-27, NPTF

- 90 degree, 5/16 inch hydraulic flared tube

2шт.

2

822467C1

TUBE,7.925 mm OD, 825, 95 mm Length

- axle pivot lubrication

2шт.

3

9402902

ELBOW - 90 degree, 5/16 inch flared tube, internal

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

5

9402902

ELBOW - 90 degree, 5/16 inch hydraulic flared tube, internal, with nipple

4шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64", Elbow with nipple

6шт.

6

822467C1

TUBE,7.925 mm OD, 825, 95 mm Length

- axle pivot lubrication, elbow w/ nipple

2шт.

7

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING - grease, straight, 1/8 inch PT, short, elbow w/ nipple

7шт.

8

105404

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8 x 3/4 inch PT, elbow with

2шт.
