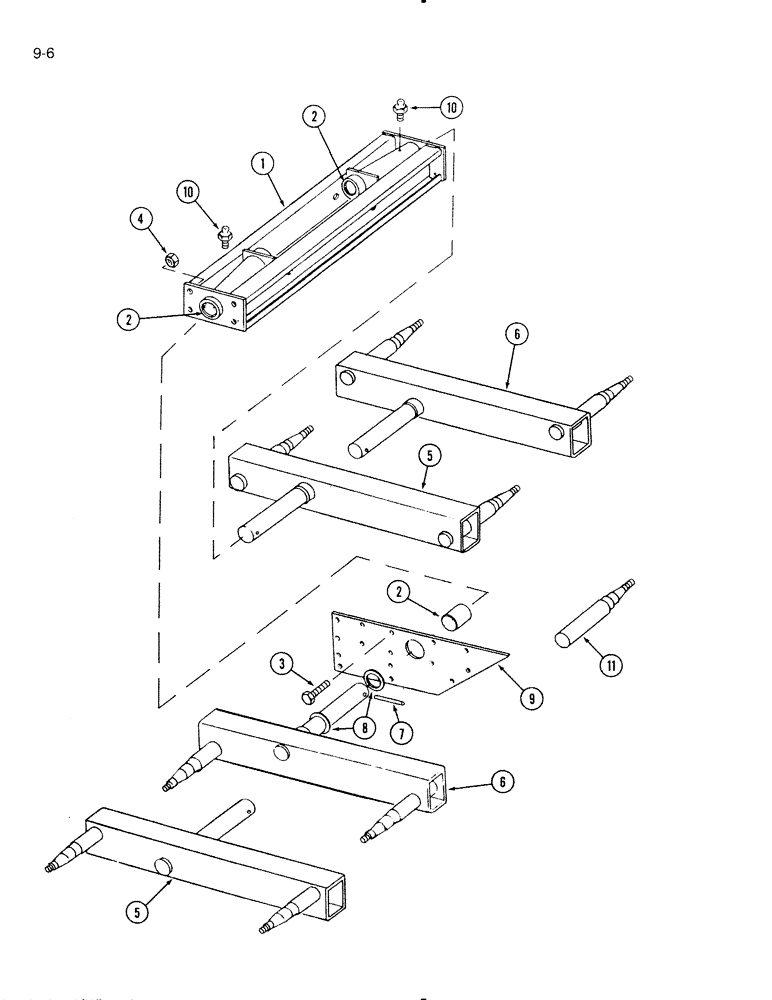

Запчасти Case IH 575 (9-06) - AXLE AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

822440C92

PIVOT

- axle assemblies

1шт.

2

822133C1

BUSHING

- axle pivot

4шт.

3

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

822120C91

AXLE

ASSEMBLY - tandem (See Note A)

1шт.

95-81032

WASHER,29/32" x 2" x .179"

- flat, 29/32 x 2 x 5/32 inch

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

2шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

6

822121C91

AXLE

ASSEMBLY - tandem (See Note B)

1шт.

95-81032

WASHER,29/32" x 2" x .179"

- flat, 29/32 x 2 x 5/32 inch

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

2шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

7

822396C1

PIN

- axle

2шт.

432-1216

COTTER PIN,3/16" x 1"

4шт.

8

805190R1

WASHER

- axle pivot rod

4шт.

9

822113C1

PLATE

- axle support

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

26шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

26шт.

425-1010

NUT,5/8"-11, G5

26шт.

10

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, short, 1/8 inch PTF

2шт.

11

822536C91

SPINDLE

ASSEMBLY - axle service

1шт.

NSS

NOT SOLD SEPARAT

SPINDLE - axle (Order 822536C91 spindle assembly)

1шт.

95-81032

WASHER,29/32" x 2" x .179"

- flat, 29/32 x 2 x 5/32 inch

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.
