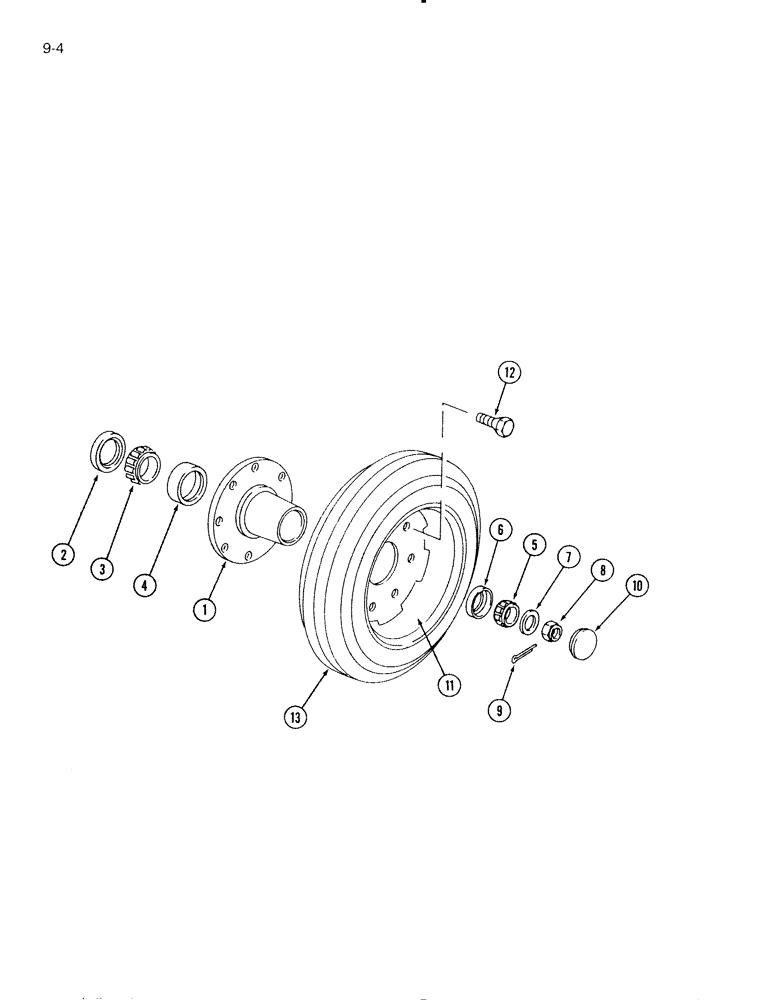

Запчасти Case IH 575 (9-04) - WHEEL, HUB AND BEARINGS (09) - CHASSIS/ATTACHMENTS

1

592920R2

HUB

- wheel

1шт.

2

821414C1

OIL SEAL

- oil, wheel hub

1шт.

3

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

CONE - tapered roller bearing, inner

1шт.

4

ST987

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

5

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE - tapered roller bearing, outer

1шт.

6

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - tapered roller bearing, outer

1шт.

7

95-81032

WASHER,29/32" x 2" x .179"

- flat, 29/32 x 2 x 5/32 inch

1шт.

8

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted, 7/8 inch NF

1шт.

9

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

10

612884R1

HUB CAP

CAP - wheel hub

1шт.

11

820936C1

WHEEL

- W8B x 20 (Replaces 820545C1)

1шт.

12

617918R1

BOLT,9/16" - 18 x 1 15/32"

- wheel

8шт.

13

REF

INSTRUCTION

TIRE AND TUBE - 10.00 x 20, 10 ply truck

1шт.

13

REF

INSTRUCTION

TIRE AND TUBE - 10.11 x 20, 12 ply truck

1шт.
