Запчасти Case IH 570 (B-40) - FORAGE BOX UPPER EXTENSION REAR SIDE (00) - COMPLETE MACHINE

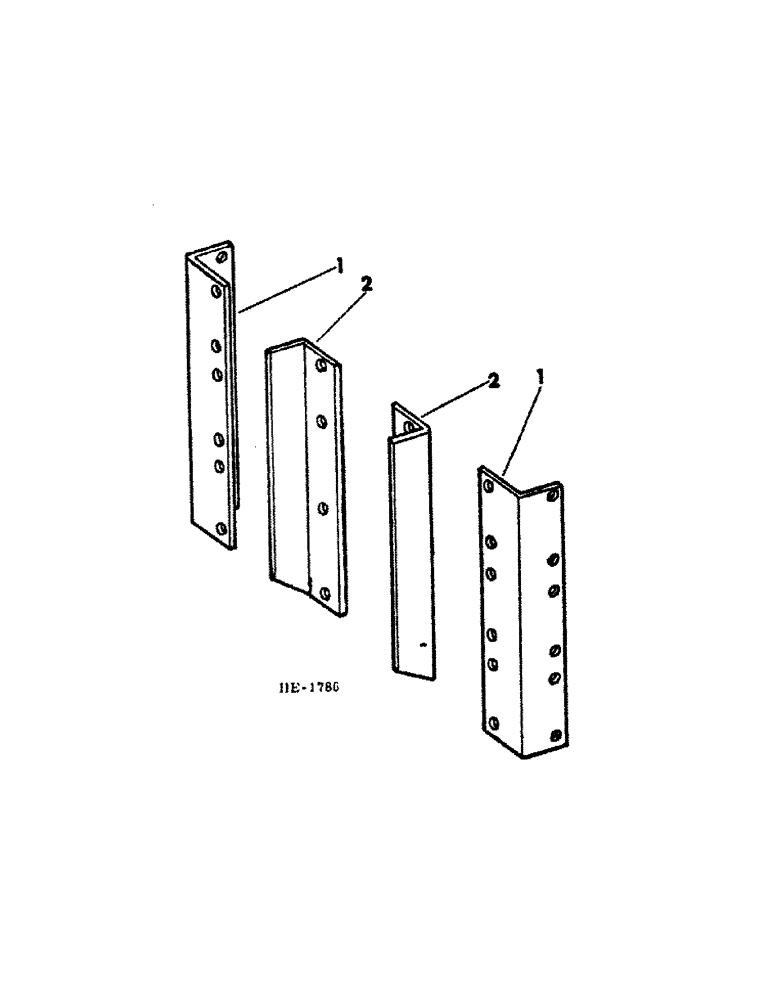

Схема запчастей Case IH 570 - (B-40) - FORAGE BOX UPPER EXTENSION REAR SIDE (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

594924R1

ANGLE, rear side corner tie LH

1шт.

1

594925R1

ANGLE, rear side corner tie RH

1шт.

17142R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2

BOLT, 3/8-16 x 3-1/2 crg type 1

4шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

20шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

21314R1

WASHER, .406 sq x 1.000 x .054

24шт.

2

594926R1

ANGLE, rear side support LH

1шт.

2

594927R1

ANGEL, rear side support RH

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

17142R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2

BOLT, 3/8-16 x 3-1/2 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

21314R1

WASHER, .406 sq x 1.000 x .054

6шт.

611346R1

WASHER

.406 x .875 x .054

2шт.

Выбрано товаров: 17
