Запчасти Case IH 570 (B-40[A]) - CAB GUARD TRUCK MODEL ONLY (00) - COMPLETE MACHINE

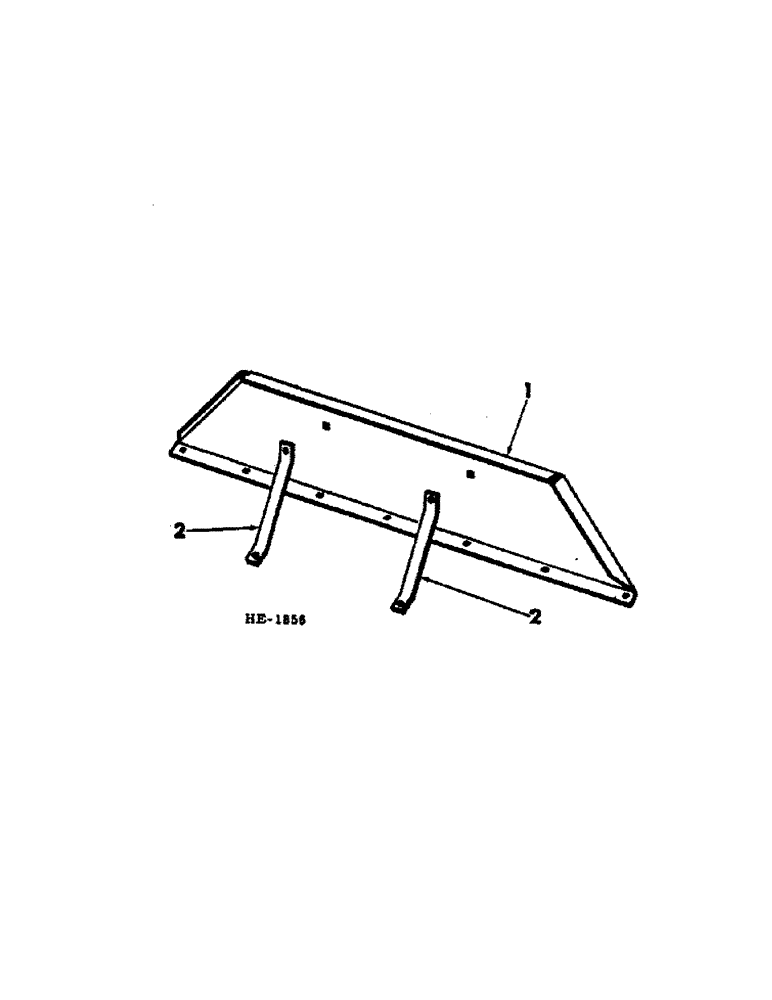

Схема запчастей Case IH 570 - (B-40[A]) - CAB GUARD TRUCK MODEL ONLY (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

594606R1

GUARD

cab

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

594607R1

BRACE, cab guard

2шт.

550796

BOLT, 3/8-16 x 1-1/4 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 8
