Запчасти Case IH 570 (B-35) - FORAGE BOX SIDE SUPPORTS (00) - COMPLETE MACHINE

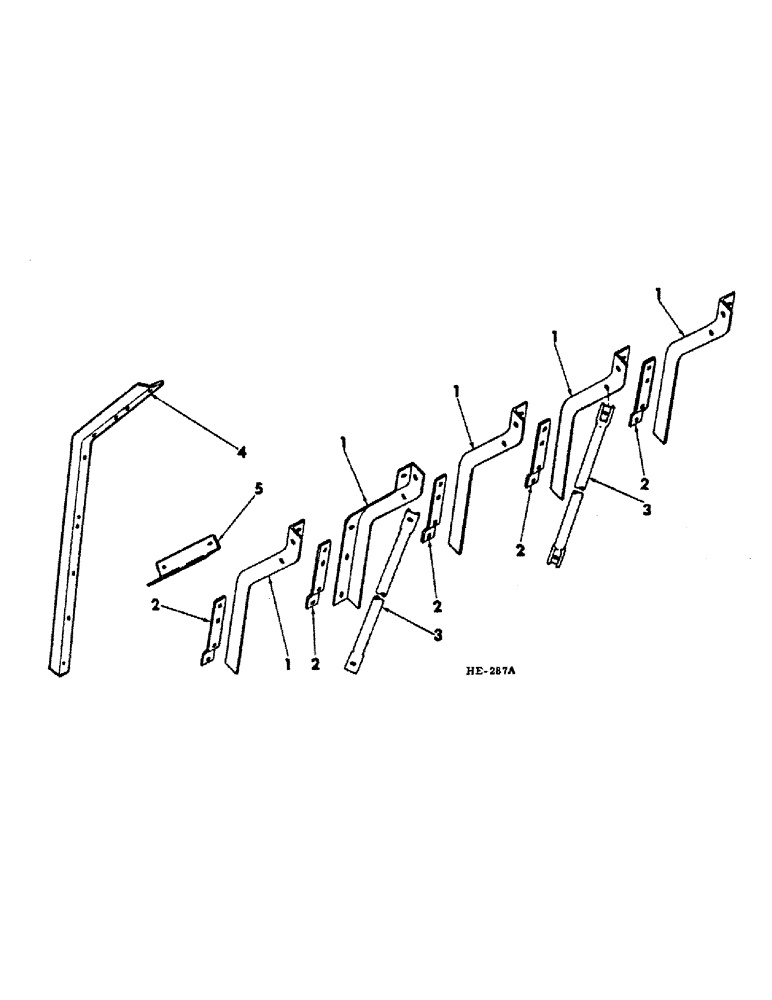

Схема запчастей Case IH 570 - (B-35) - FORAGE BOX SIDE SUPPORTS (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

594889R1

SUPPORT, forage box side LH

5шт.

1

594890R1

SUPPORT, forage box side RH

5шт.

637979R1

BOLT, 3/8-16 x 1-1/2 crg

40шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

BOLT, 3/8-16 x 2-3/4 crg type 1

10шт.

120377

NUT,3/8" - 16, Gr 5

50шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

50шт.

21314R1

WASHER, .406 sq x 1.000 x .054

50шт.

2

594891R1

BRACE, forage box side support

10шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8-16 x 2 crg

30шт.

469668R1

WASHER

.406 x .750 x .054

20шт.

120377

NUT,3/8" - 16, Gr 5

30шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

30шт.

3

594892R1

BRACE, side support pipe

4шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16-14 x 1 hex-hd

4шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex-hd

4шт.

271501

SOCKET

NUT, 7/16-14 hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

4

594893R1

SUPPORT, forage box rear LH

1шт.

4

594894R1

SUPPORT, forage box rear RH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

14шт.

120377

NUT,3/8" - 16, Gr 5

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

611346R1

WASHER

.406 x .875 x .054

14шт.

5

594907R1

ANGLE, baffle board lower, required with bunk feed

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

4шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 x 2-3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

611346R1

WASHER

.406 x .875 x .054

8шт.

Выбрано товаров: 29
