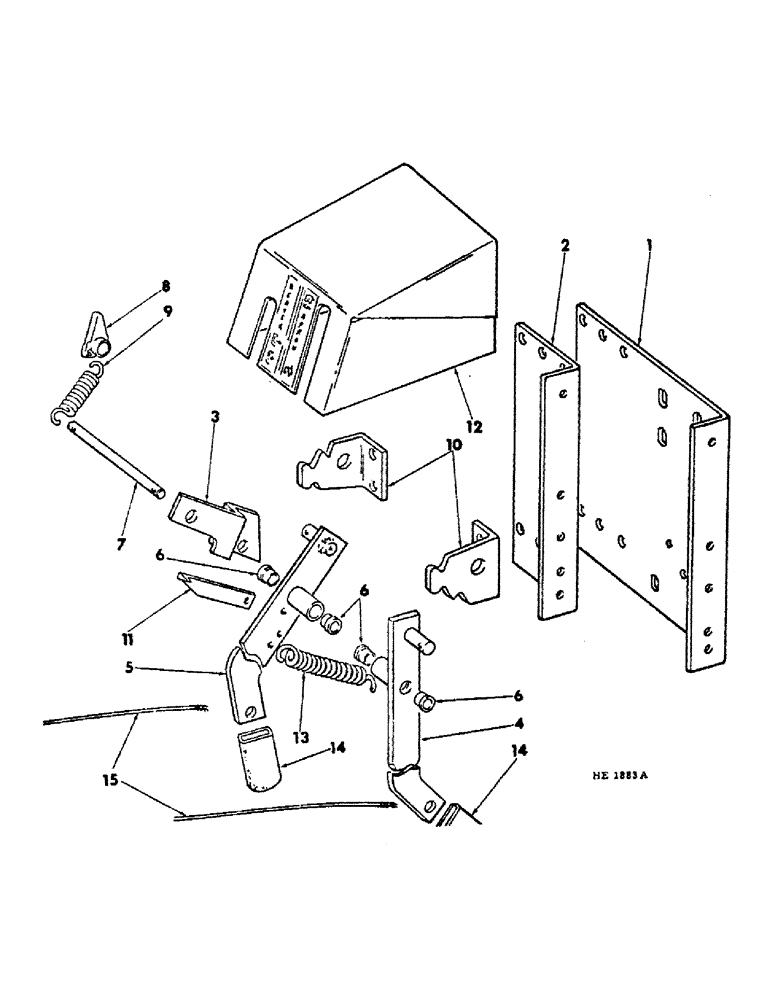

Запчасти Case IH 570 (B-28) - CONTROL LEVERS (00) - COMPLETE MACHINE

1

820796C1

SUPPORT, apron control, truck model

1шт.

2

820795C1

SUPPORT, beater control, truck model

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

820778C1

SUPPORT, control lever LH pivot

1шт.

3

820779C1

SUPPORT, control lever RH pivot

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8-16 x 4 hex-hd

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

820337C1

LEVER

ASSY, apron drive control, for service order 1-822509C1 lever assy

1шт.

4

822509C1

LEVER

ASSY, apron drive control

1шт.

178373R1

WASHER

.531 x 1.000 x .054

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

5

820338C1

LEVER ASSY, widespread drive control, for service order 1-822508C1 lever assy

1шт.

5

822508C1

LEVER

ASSY, widespread drive control

1шт.

178373

WASHER, .531 x 1.000 x .054

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

820317C1

BUSHING

lever pivot

4шт.

7

820489C1

PIN

lever pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

8

820343C1

PAWL

control lever sector

2шт.

9

34A

SPRING

pawl

2шт.

10

820780C1

SECTOR, lever control

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

11

820781C1

INDICATOR

control lever

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

820783C1

SHIELD

ASSY, control lever

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

2427-1

SPRING

control lever return

2шт.

Q3512

HEADED PIN,1/4" x .859"

PIN, 1/4 x 1 std-hd dld

1шт.

132-347

COTTER PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

2шт.

ref# 13 should be 2427-1 cwh 10/8/98

1шт.

14

938885R1

GRIP

lever handle, truck model

2шт.

15

ROPE, 1/4 x 18 foot nylon, trail behind model, dealer to furnish locally

1шт.
