Запчасти Case IH 570 (B-25) - BOX, SIDES (00) - COMPLETE MACHINE

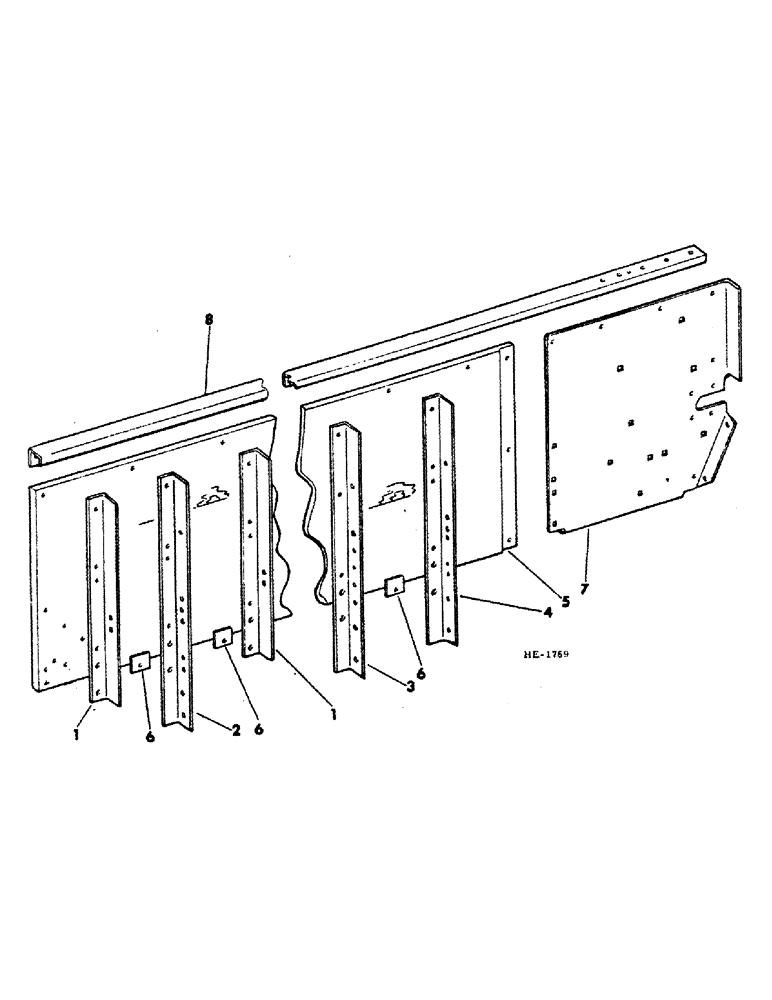

Схема запчастей Case IH 570 - (B-25) - BOX, SIDES (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

592885R2

ANGLE

first & third side LH

2шт.

592884R1

ANGLE, first & third side RH

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

2

820875C1

ANGLE

second side LH

1шт.

2

592887R2

ANGLE

second side RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

592887R2

ANGLE

fourth side LH, 570

1шт.

3

820875C1

ANGLE

fourth side LH, 580

1шт.

3

820875C1

ANGLE

fourth side RH, 570

1шт.

3

592887R2

ANGLE

fourth side RH, 580

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd, 2 used 580 spreader

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd, 2 used 580 spreader

1шт.

123078

NUT, 1/2-13 hex

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

820875C1

ANGLE

fifth side LH

1шт.

4

592887R2

ANGLE

fifth side RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

820913C1

BOARD, side LH, 570

1шт.

5

820903C1

BOARD

side LH, 580

1шт.

5

820933C1

BOARD, side RH, 570

1шт.

5

820904C1

BOARD, side RH, 580

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

18шт.

120377

NUT,3/8" - 16, Gr 5

18шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

6

592883R1

STRIP

BAR, side support strip, 7 used trail behind models, 9 used truck models

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd, 1 bolt used per bar

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

7

820905C1

SIDE, rear LH

1шт.

7

820906C1

SIDE, rear RH

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 X 1-1/2 crg

2шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 crg

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2-13 x 1 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

592890R2

CHANNEL, side top LH, 570

1шт.

8

592892R1

CHANNEL, side top LH, 580

1шт.

8

592891R2

CHANNEL

side top RH, 570

1шт.

8

592893R1

CHANNEL, side top RH, 580

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

6шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 crg

12шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

12шт.

120377

NUT,3/8" - 16, Gr 5

30шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

30шт.

619856R1

WASHER

.406 x 1.000 x .056

12шт.

Выбрано товаров: 55
